MG TF Factory Workshop Manual (2002-2005)10 · Manual gearbox
10 · Transmission

Selector shaft oil seal (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Manual gearboxSelector shaft oil seal · page 2 of 2

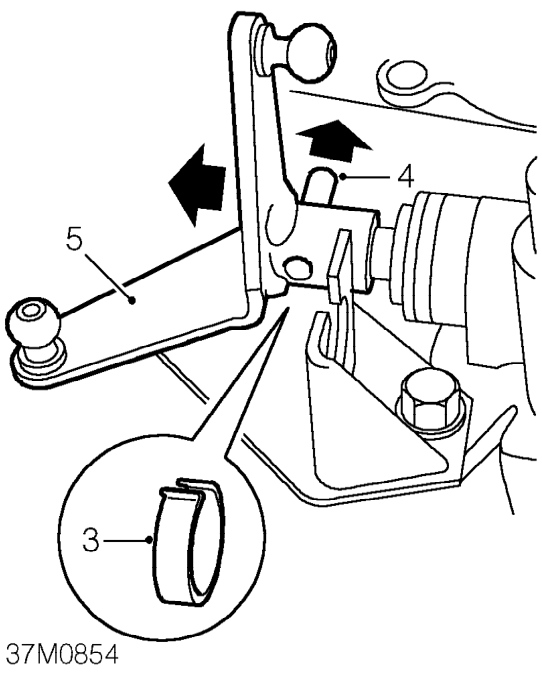

Diagram
  1. Remove clip securing selector linkage roll pin.
  2. Using a suitable punch, drive out roll pin from selector linkage and discard roll pin.
  3. Remove selector linkage from shaft.

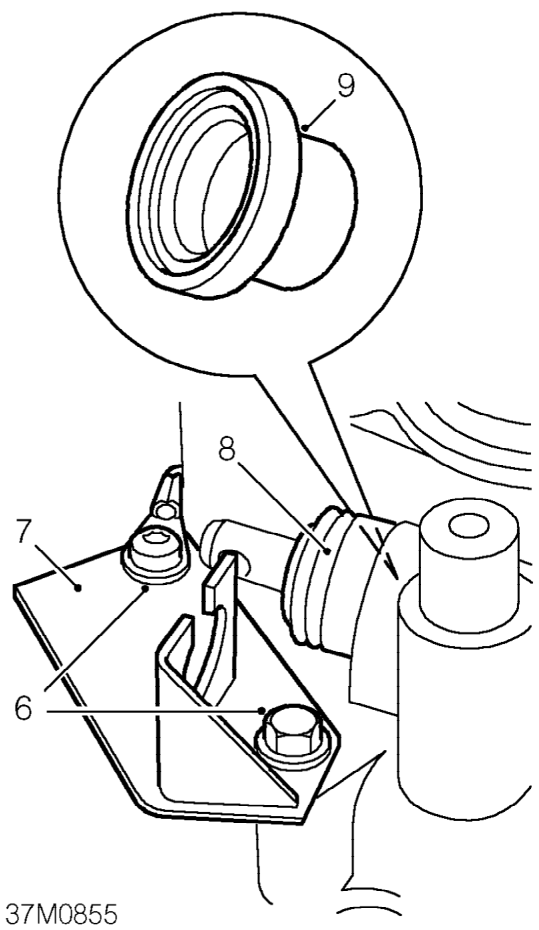

Remove selector linkage from shaft.
  1. Remove bolt and Torx screw securing lower gear change cable abutment bracket to gearbox.
  2. Remove gear change cable abutment bracket.
  3. Remove oil seal cover from selector shaft.
  4. Using a flat screwdriver remove oil seal from gearbox and discard oil seal.
