Manual gearboxReverse lamp switch · page 1 of 2

Refit

  1. Clean oil seal housing and selector shaft.
  2. Lubricate new seal using clean unused engine oil.
  3. Fit oil seal to selector shaft.
  4. Secure seal to gearbox using a deep socket.
  5. Fit oil seal cover and secure to seal flange.
  6. Fit gear change cable abutment bracket, fit bolts and tighten to 45 Nm.

NOTE: Position earth lead to abutment bracket retaining bolt.

  1. Fit selector linkage to shaft, align holes, fit new roll pin and secure clip.
  2. Secure gear change cables to selector linkage.
  3. Remove stand(s) and lower vehicle.

REVERSE LAMP SWITCH

Service repair no - 37.27.01

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove engine compartment access panel. See BODY, Exterior fittings.

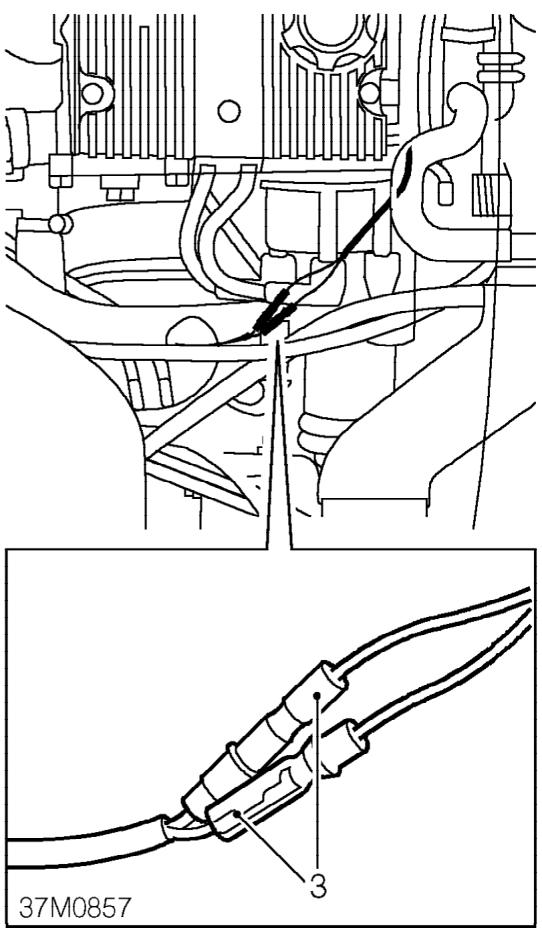

Reverse lamp switch – Remove engine compartment access panel. See BODY, Exterior fittings.
  1. Disconnect reverse lamp switch connectors.
