Reverse lamp switch (page 2 of 2)

Make

MG

Model

TF Factory Workshop Manual

Year

2002–2005

Section

Repairs

Manual gearboxReverse lamp switch · page 2 of 2

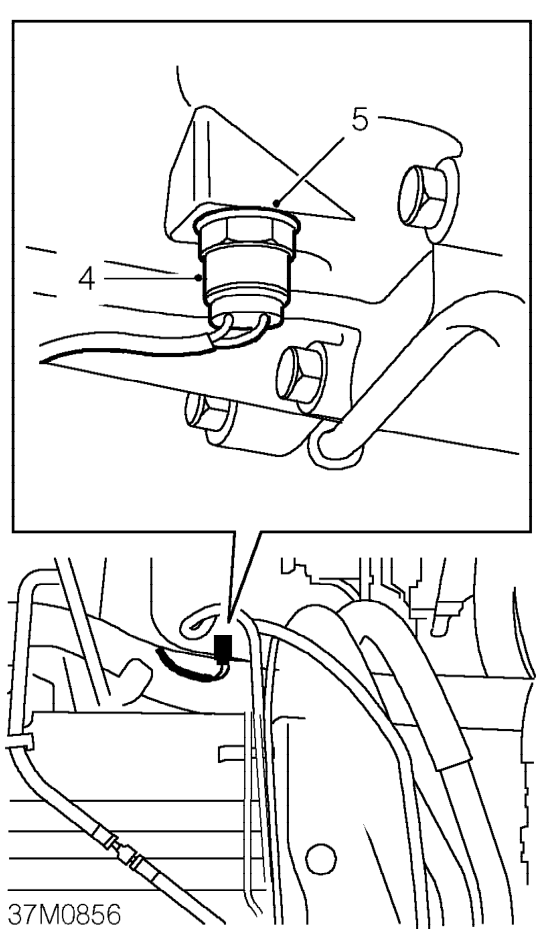

4. Remove reverse lamp switch.
5. Collect sealing washer and discard.

Refit

1. Clean threads and mating faces of reverse lamp switch.
2. Fit NEW sealing washer to reverse lamp switch.
3. Fit and tighten reverse lamp switch to gearbox.
4. Connect reverse lamp switch connectors.
5. Fit engine compartment access panel. See BODY, Exterior fittings.
6. Remove stand(s) and lower vehicle.

10 Transmission
