Fuel delivery systemFuel pump · page 1 of 2

FUEL PUMP

Service repair no - 19.45.08

Remove

  1. Remove fuel tank. See this section.

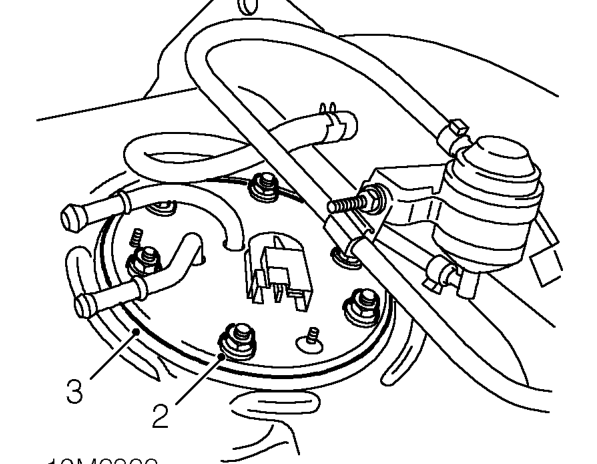

Fuel pump – Remove fuel tank. See this section.
  1. Remove 6 nuts securing fuel pump.
  2. Remove fuel pump and discard seal.

Refit

  1. Clean mating faces fuel pump and fuel tank.
  2. Using a new seal fit the fuel pump.
  3. Fit nuts securing fuel pump to fuel tank and tighten to 9 Nm.
  4. Fit fuel tank. See this section.

FUEL TANK

Service repair no - 19.55.01

Remove

  1. Drain fuel tank. See Adjustments.
  2. Remove spare wheel.

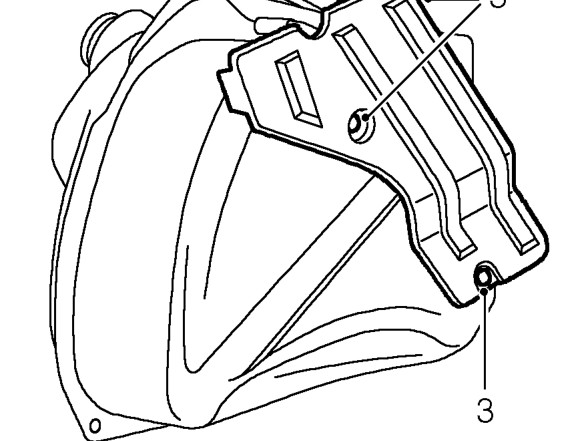

Fuel tank – Remove spare wheel.
  1. Remove studs securing fuel tank side cover and remove cover.
