Repairs › Heater valve control cable
Heating & ventilationHeater valve control cable

HEATER VALVE CONTROL CABLE

Service repair no - 80.10.07

Remove

  1. Disconnect battery earth lead.
Heater valve control cable – Disconnect battery earth lead.

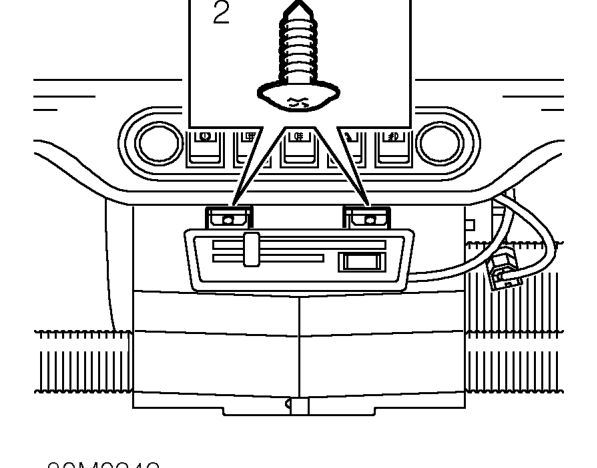

  1. Remove 2 screws securing heater to lower fascia rail.
Heater valve control cable – Remove 2 screws securing heater to lower fascia rail.

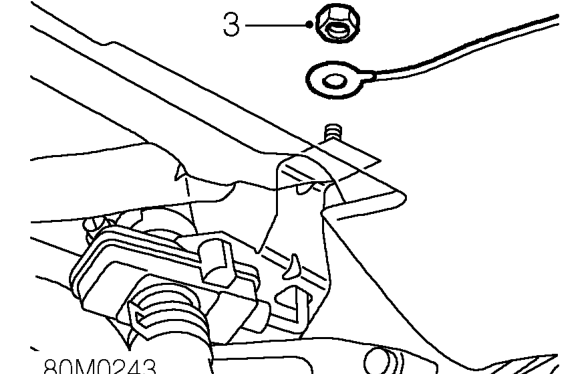

  1. Remove nut securing heater valve to fascia rail.

NOTE: An earth lead is located on the heater valve stud.

Heater valve control cable – Remove nut securing heater valve to fascia rail.

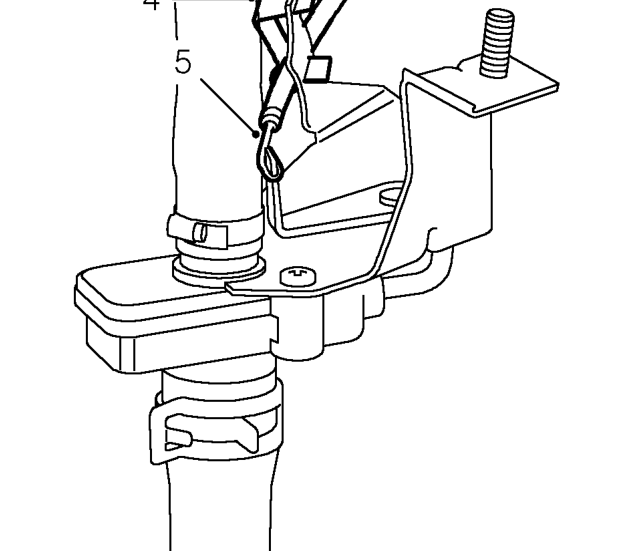

  1. Remove clip securing control cable to heater valve.
  2. Disconnect control cable from lever on valve.
Heater valve control cable – Disconnect control cable from lever on valve.

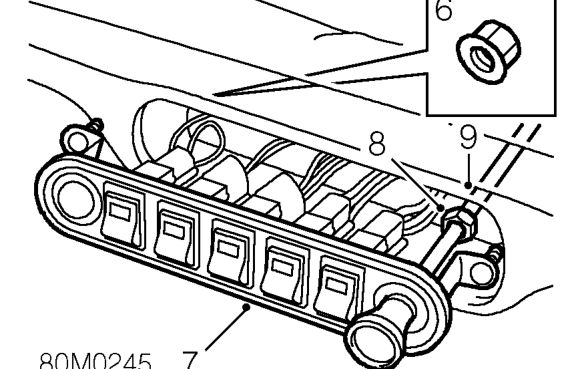

  1. Remove 2 nuts securing switch panel to lower fascia rail.
  2. Release switch panel from fascia rail.
  3. Remove nut securing control cable to switch panel.
  4. Remove heater control cable.
