Heating & ventilationResistor unit

RESISTOR UNIT

Service repair no - 80.20.17

Remove

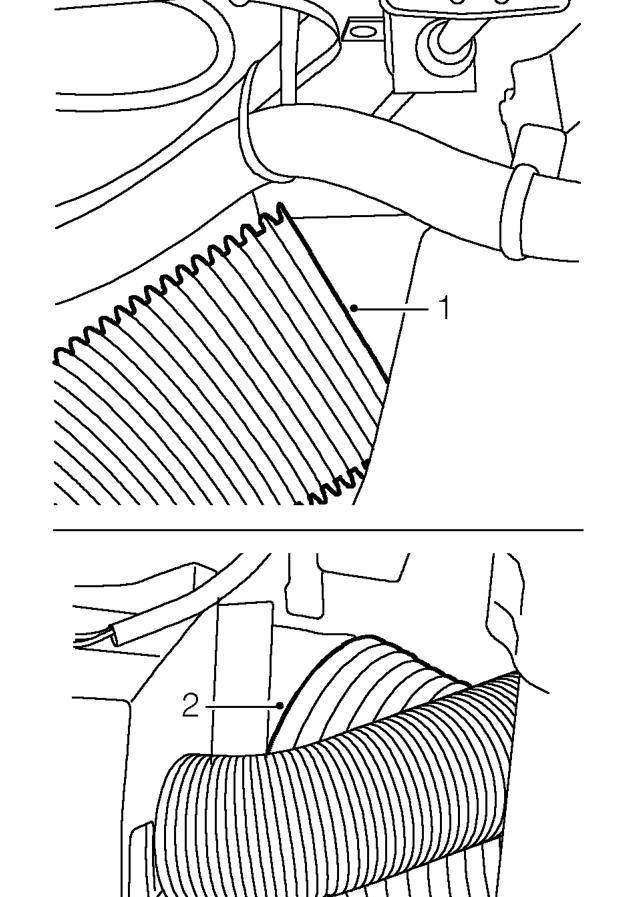

Resistor unit – Service repair no - 80.20.17
  1. Release heater air intake duct from adaptor on body.
  2. Remove air intake duct from heater.

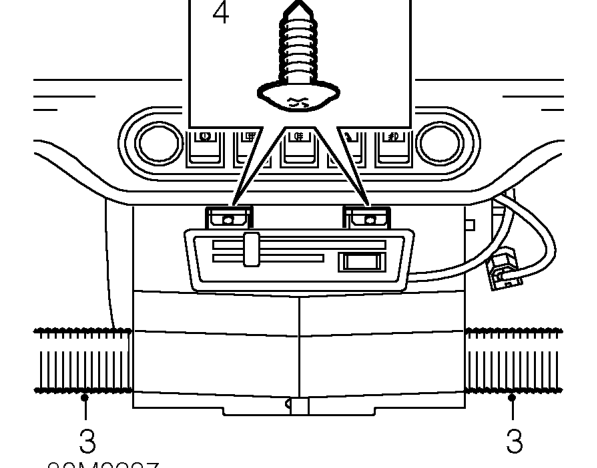

Resistor unit – Remove air intake duct from heater.
  1. Disconnect both demister ducts from heater.
  2. Remove 2 screws securing heater to fascia rail.

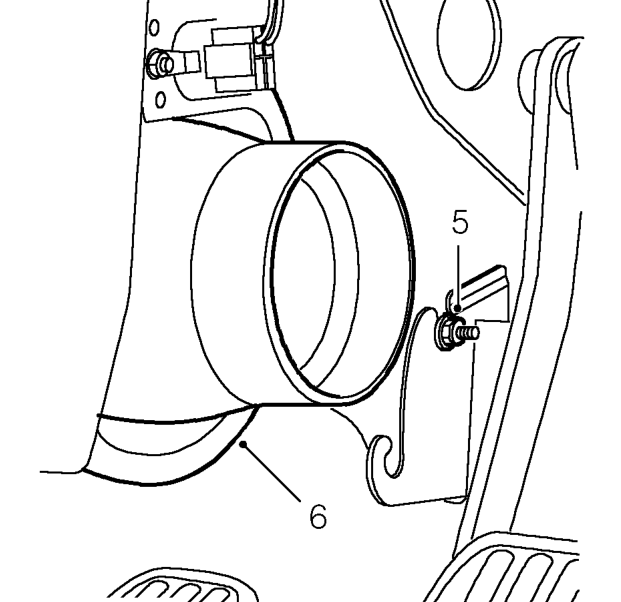

Resistor unit – Remove 2 screws securing heater to fascia rail.
  1. Loosen nut securing heater to bulkhead.
  2. Lower heater.
