Heater motor and fan

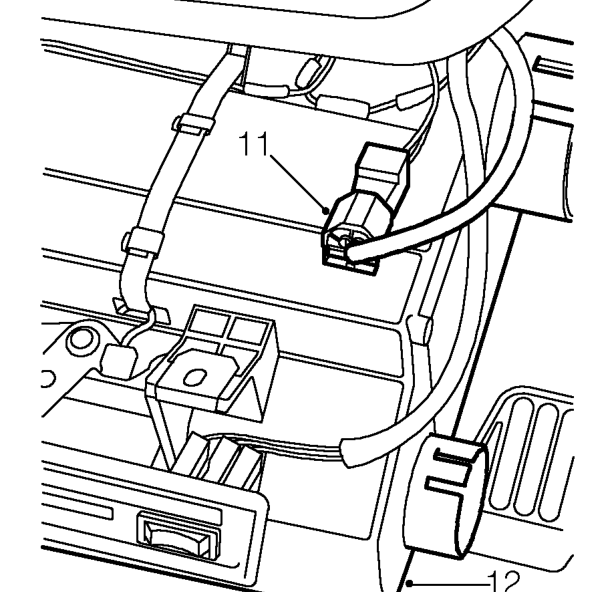

11. Disconnect multiplug from heater harness.
12. Release heater from bulkhead and remove heater.

Refit

1. Position heater in vehicle and locate on mounting brackets on bulkhead.
2. Connect multiplug to heater harness.
3. Align heater to fascia rail and secure with screws.
4. Tighten nut securing heater to bulkhead.
5. Remove plugs from heater connections.
6. Connect coolant hoses to heater and secure with clips.
7. Fit air intake duct to heater.
8. Connect heater air intake duct to adaptor on body.
9. Connect demister ducts to heater.
10. Refill cooling system. See COOLING SYSTEM, Adjustments.
11. Remove container positioned to collect coolant spillage

HEATER MOTOR AND FAN

Service repair no - 80.20.15

Remove

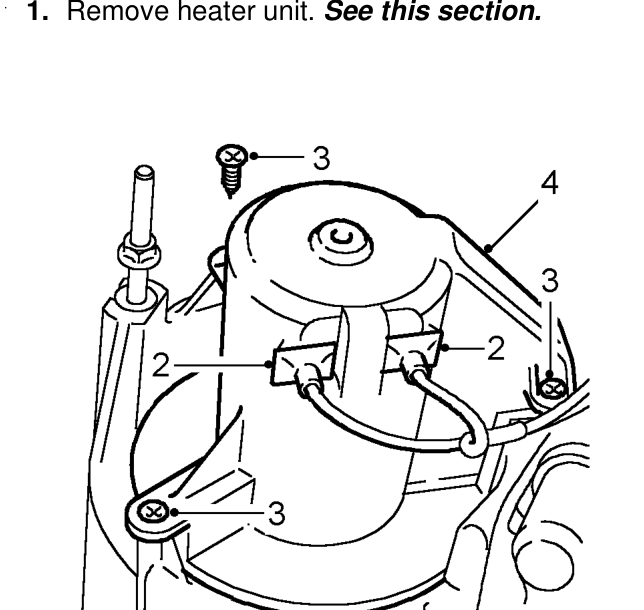

1. Remove heater unit. See this section.

2. Disconnect 2 Lucars from heater motor.
3. Remove 3 screws securing heater motor to housing.
4. Withdraw heater motor and fan from housing and remove.

NOTE: The heater motor and fan can only be renewed as an assembly.

Refit

1. Fit heater motor and fan to housing and secure with screws.
2. Connect Lucars to heater motor.
3. Fit heater unit. See this section.
