Workshop Manuals Factory service & repair Mini
Mini Mini Workshop Manual (1996-2000)18 · Heating & ventilation
18 · Heating & A/C

Heater fan switch (page 2 of 2)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
Heating & ventilationHeater fan switch · page 2 of 2
Diagram

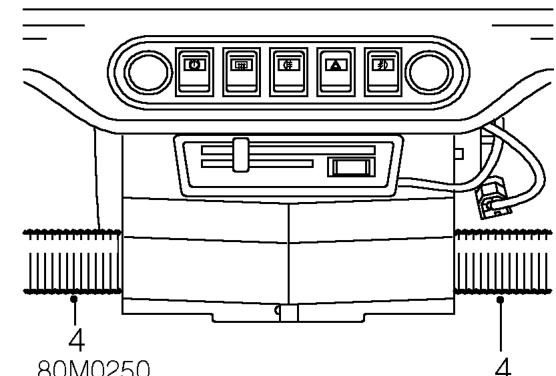

  1. Disconnect both demister ducts from heater.
  2. Position container to collect coolant spillage from heater.
Position container to collect coolant spillage from heater.

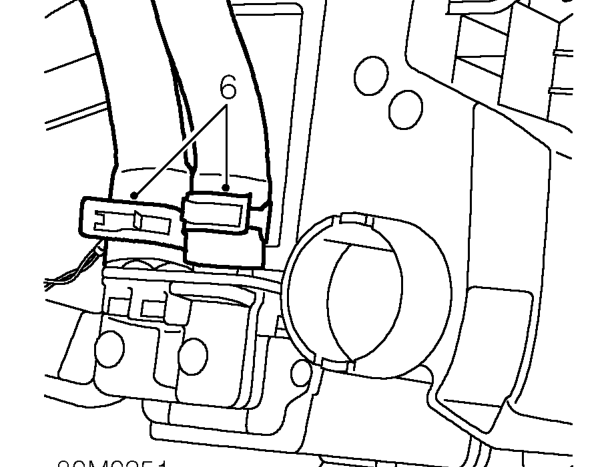

  1. Release clips and disconnect coolant hoses from heater.
  2. Allow coolant to drain then plug the heater connections.
Allow coolant to drain then plug the heater connections.

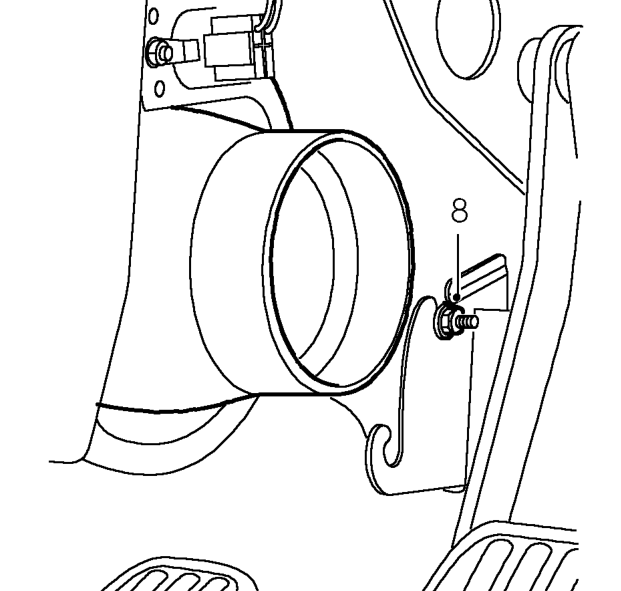

  1. Loosen nut securing heater to bulkhead.
Loosen nut securing heater to bulkhead.

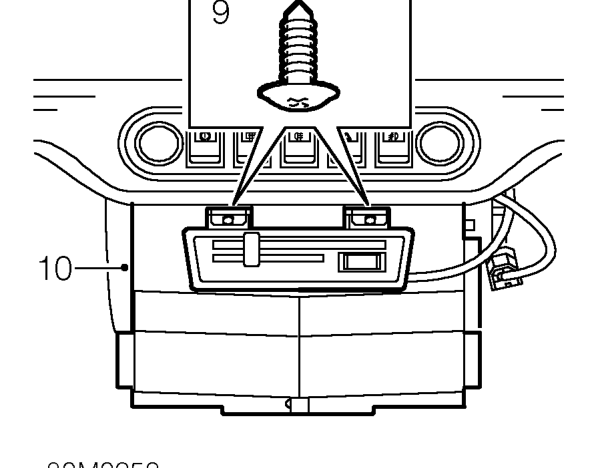

  1. Remove 2 screws securing heater to fascia rail.
  2. Lower heater.
