Heating & ventilationHeater fan switch · page 1 of 2

HEATER FAN SWITCH

Service repair no - 80.10.22

Remove

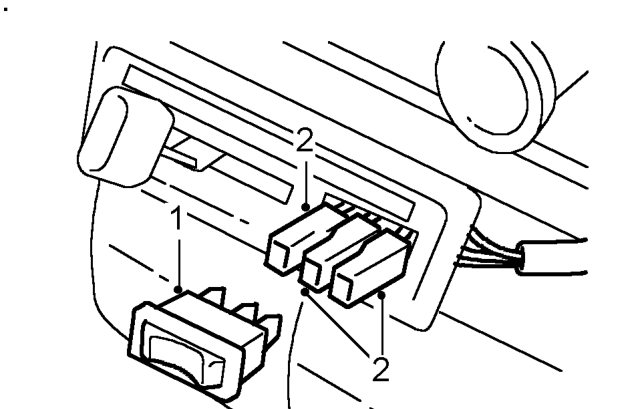

Heater fan switch – Service repair no - 80.10.22
  1. Release switch from heater panel.
  2. Disconnect 2 Lucars from switch.
  3. Remove switch.

Refit

  1. Position switch and connect Lucars.
  2. Fit switch to heater panel.

HEATER UNIT

Service repair no - 80.20.01.99

Remove

  1. Drain cooling system. See COOLING SYSTEM, Adjustments.

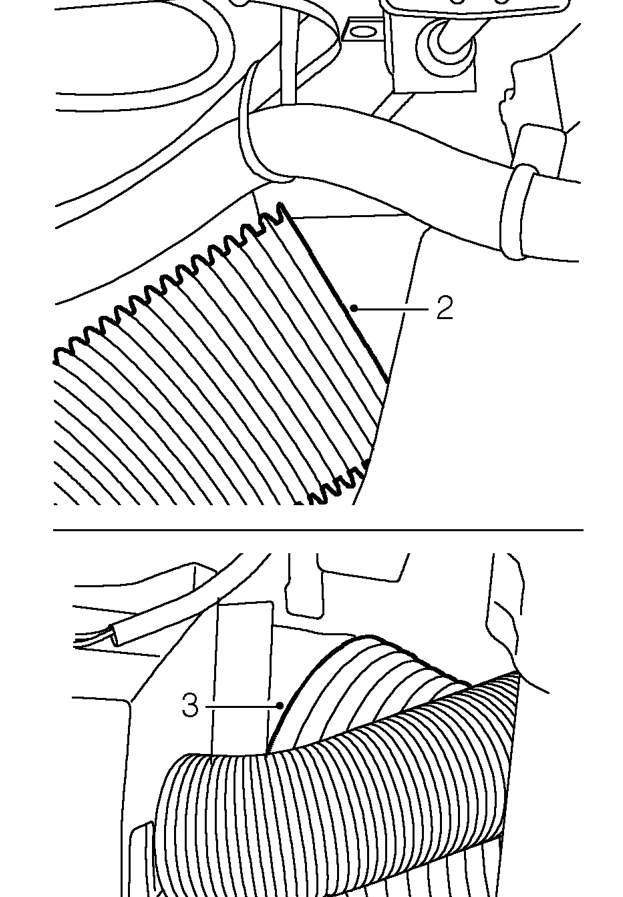

Heater unit – Drain cooling system. See COOLING SYSTEM, Adjustments.
  1. Release heater air intake duct from adaptor on body.
  2. Remove air intake duct from heater.
