Heating & ventilationHeater valve · page 2 of 2
  1. Lower heater valve to gain access to heater hose.
  2. Release clip and disconnect heater hose from valve.

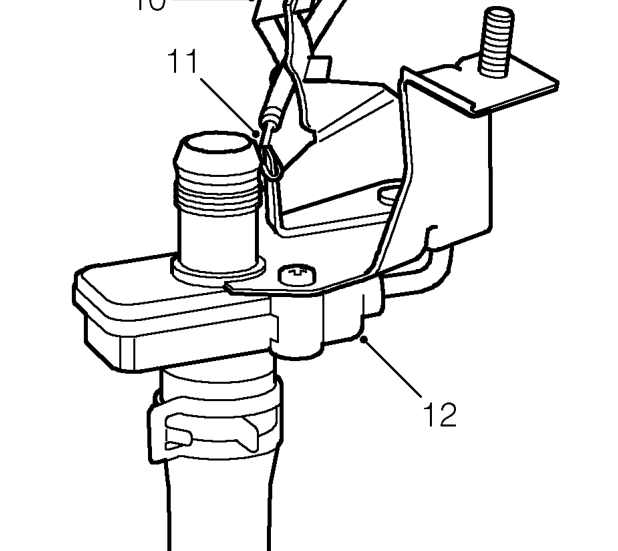

Release clip and disconnect heater hose from valve.
  1. Remove clip securing heater control cable to valve.
  2. Disconnect control cable from lever on valve.
  3. Remove heater valve.

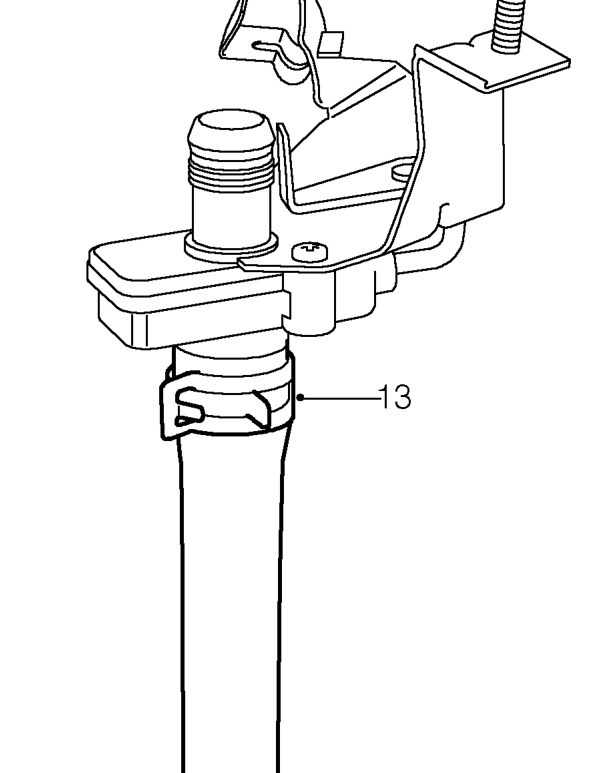

Remove heater valve.
  1. Release clip and remove hose from heater valve.

Refit

  1. Fit heater hose to valve and secure with clip.
  2. Position heater valve to fascia support rail.
  3. Connect hose to heater valve and secure with clip.
  4. Connect heater control cable to lever on valve and secure with clip.
  5. Fit heater valve to fascia support rail, fit earth lead to heater valve stud and tighten nut.
  6. Connect hose to heater and secure with clip.
  7. Connect demister duct to heater.
  8. Remove container to collect coolant spillage from heater.
  9. Refill cooling system. See COOLING SYSTEM, Adjustments.
