Mini Mini Workshop Manual (1996-2000)13 · Steering
13 · Steering & suspension

Steering rack and pinion (page 2 of 4)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
SteeringSteering rack and pinion · page 2 of 4
Diagram
  1. Remove bolt securing steering column to steering rack pinion.
  2. Remove bolt securing steering column to support bracket.
  3. Remove steering column assembly.
Remove steering column assembly.

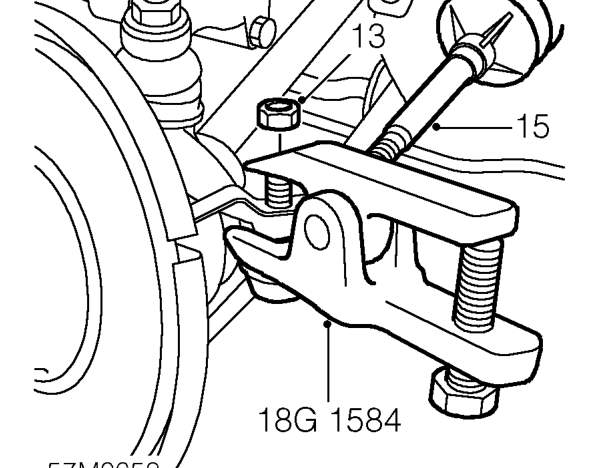

  1. Remove nuts securing steering rack track ends to front hubs.
  2. Break taper joints using tool 18G 1584.
  3. Disconnect track rod ends from front hubs.
Disconnect track rod ends from front hubs.

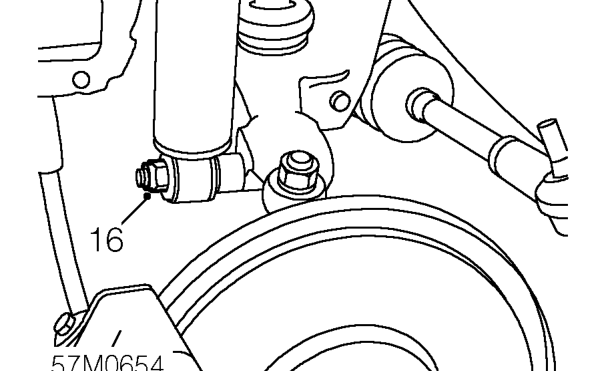

  1. Remove nuts and bolts securing front dampers to suspension upper arms, collect spacers and washers.
