Rear screen

REAR SCREEN

Service repair no - 76.81.10

NOTE: The following equipment is required:

Cutting wire and handles. Windscreen repair kit. Sealer applicator gun. Suction cups.

WARNING: Wear protective gloves when handling glass, solvents, and primers.

WARNING: Wear suitable eye protection when removing and refitting glass.

Remove

1. Remove rear screen wiper motor. See WIPERS & WASHERS, Repairs.
2. Remove tailgate spoiler. See Exterior fittings.

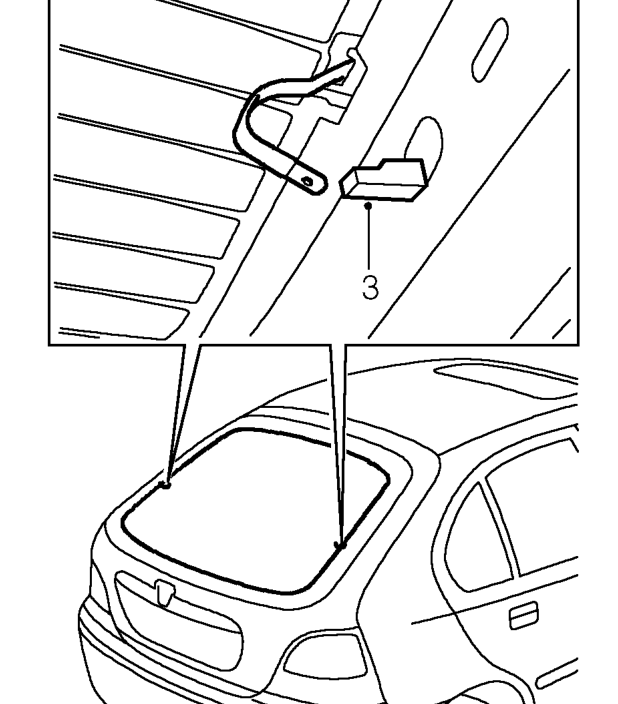

3. Disconnect 2 leads from rear screen demister.
4. Fit protection to rear of vehicle.
5. Fit protective cover to interior of vehicle.

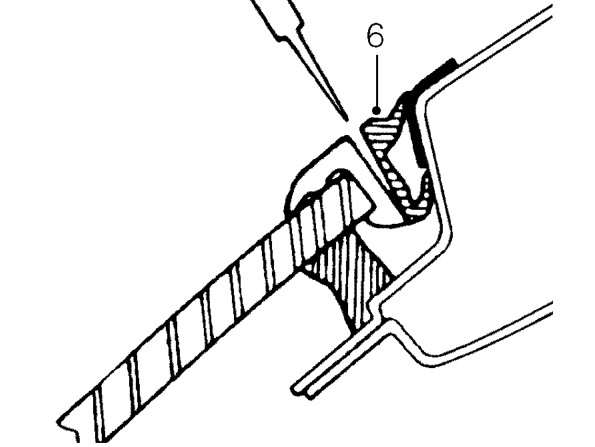

6. Carefully run a sharp blade around rear screen and remove outer lip of screen finisher.
7. Insert cutting wire through sealant at bottom corner of screen.
