WINDSCREEN

Service repair no - 76.81.01

NOTE: The following equipment is required:

Cutting wire and handles. Windscreen repair kit. Sealer applicator gun. Suction cups.

WARNING: Wear protective gloves when handling glass, solvents, and primers.

WARNING: Wear suitable eye protection when removing and refitting glass.

Remove

  1. Remove rear view mirror from windscreen.

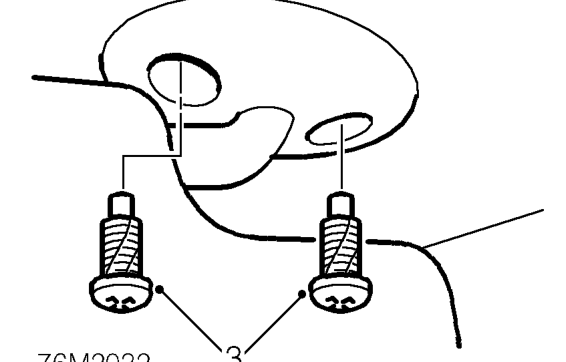

  2. Remove both ’A’ post upper trim casings. See Interior trim components.
Windscreen – Remove both ’A’ post upper trim casings. See Interior trim components.
  1. Remove 4 screws securing both sun visors to headlining.

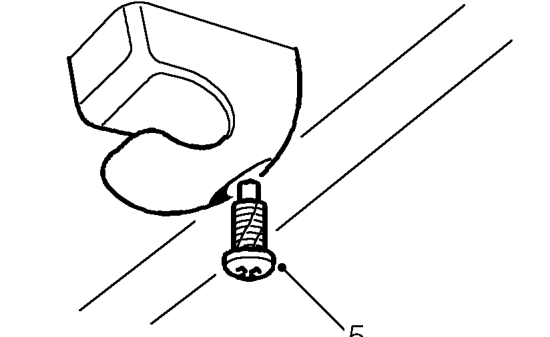

  2. Release sun visors from catches and remove.
Windscreen – Release sun visors from catches and remove.

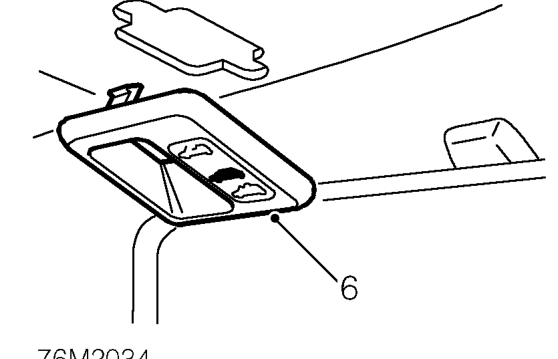

  1. Remove 2 screws securing both sun visor catches to headlining and remove catches.
Windscreen – Remove 2 screws securing both sun visor catches to headlining and remove catches.

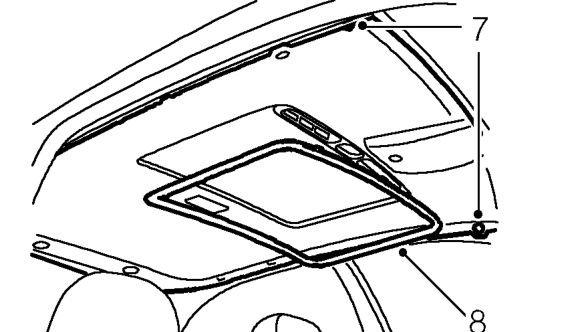

  1. Remove sun roof switch escutcheon.
Windscreen – Remove sun roof switch escutcheon.
  1. Remove 2 trim studs securing headlining to roof.
  2. Remove sun roof aperture finisher.
  3. Remove plenum air intake. See HEATING & VENTILATION, Repairs.
  4. Fit protection to bonnet and areas around screen.
  5. Apply masking tape to heater vents.
  6. Fit protective cover to interior of vehicle.
