LUGGAGE COMPARTMENT TRIM CASING

Service repair no - 76.13.53

Remove

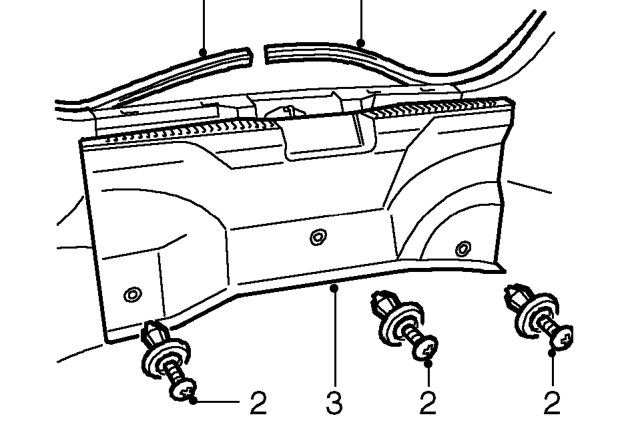

Luggage compartment trim casing – Service repair no - 76.13.53
  1. Remove seal from tailgate aperture.
  2. Remove 3 scrivets securing trim casing.
  3. Remove trim casing.

Refit

  1. Fit trim casing and secure with scrivets.
  2. Fit seal to tailgate aperture.

PARCEL TRAY

Service repair no - 76.67.06

Remove

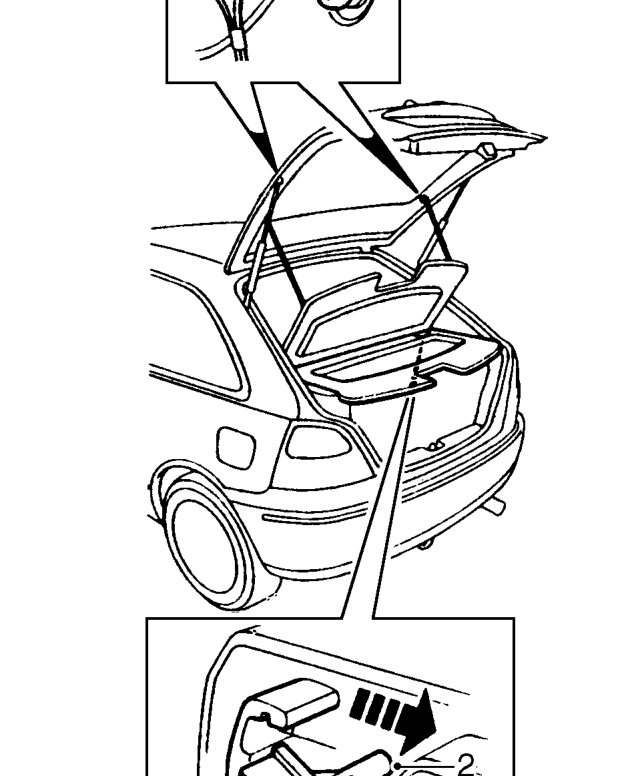

Parcel tray – Service repair no - 76.67.06
  1. Release parcel tray cables from tailgate.
  2. Release parcel tray from support panels.
  3. Remove parcel tray.

Refit

  1. Fit parcel tray and secure to support panels.
  2. Attach parcel tray cables to tailgate.
