BodyHeadlining

HEADLINING

Service repair no - 76.64.15

Remove

  1. Remove both ’A’ post upper trim casings. See this section.
  2. Remove both rear quarter trim casings. See this section.
Headlining – Remove both rear quarter trim casings. See this section.

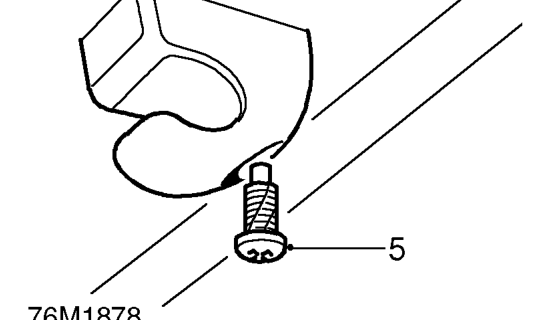

  1. Release sun visors from clips and remove 2 screws securing each sun visor.
  2. Remove sun visors.
Headlining – Remove sun visors.

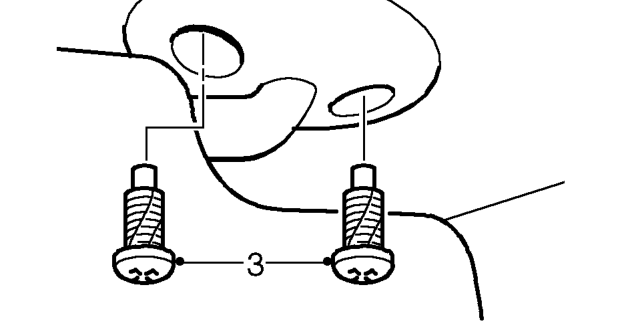

  1. Remove 2 screws securing sun visor clips.
  2. Remove both clips.
  3. Remove interior light. See ELECTRICAL, Repairs.
Headlining – Remove interior light. See ELECTRICAL, Repairs.

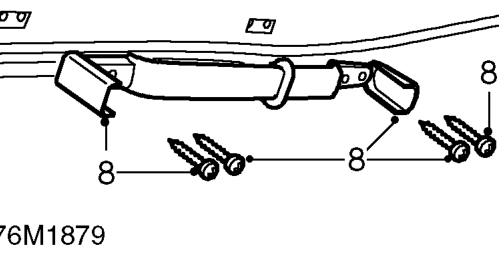

  1. Remove 2 covers and 4 screws securing each grab handle.
  2. Remove both grab handles.
Headlining – Remove both grab handles.

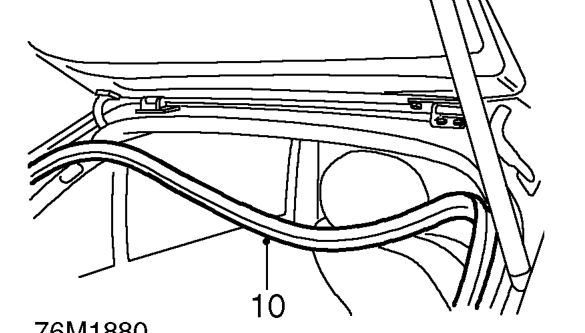

  1. Release sealing rubber from top of tailgate aperture.
