FRONT CONSOLE

Service repair no - 76.25.01

Remove

  1. Remove rear console. See this section.
  2. Remove radio. See ELECTRICAL, Repairs.
  3. Release gaiter and remove gear knob.

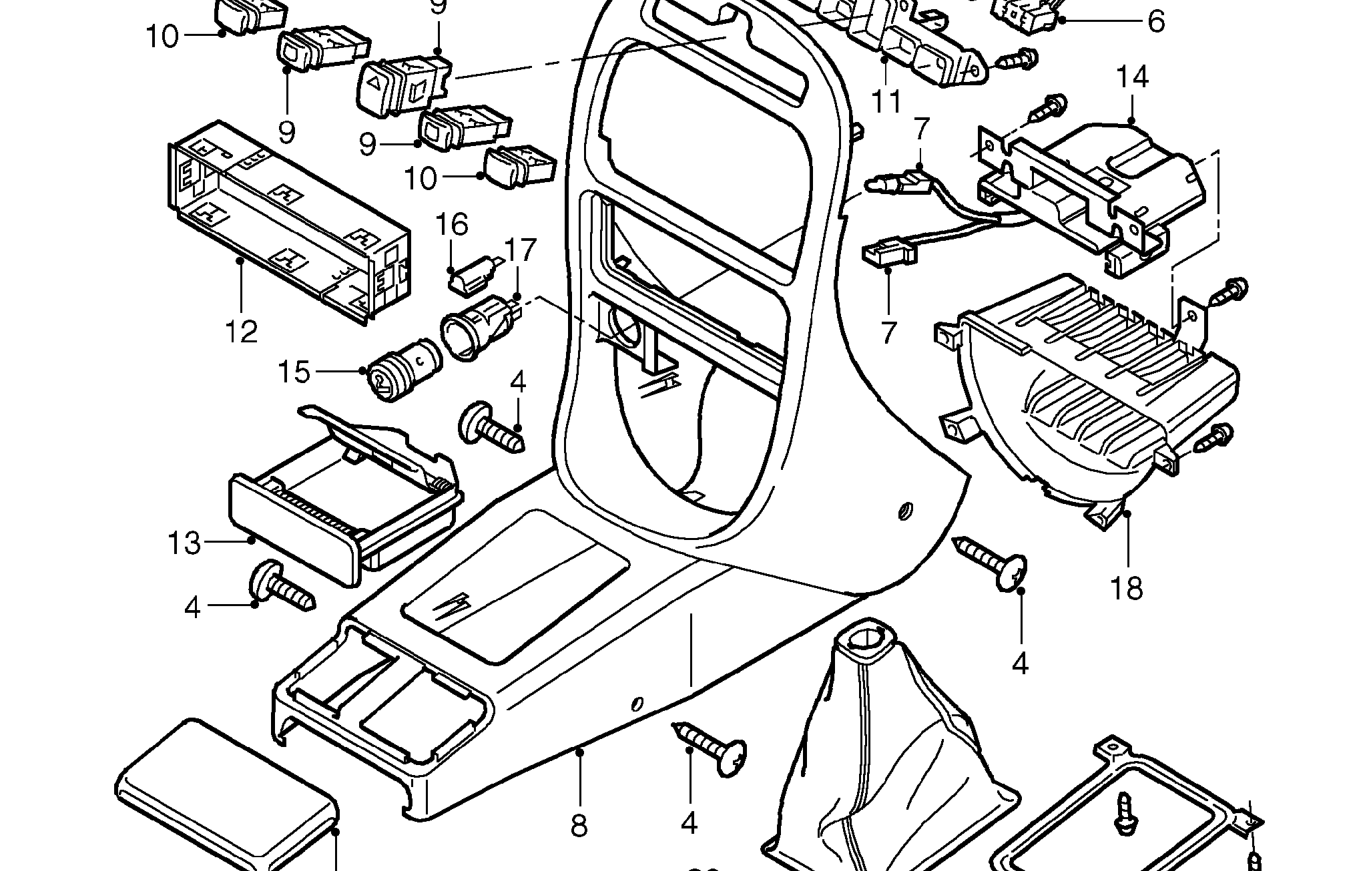

Front console – Release gaiter and remove gear knob.
  1. Remove 4 screws securing front console to fascia.
  2. Release front console from fascia to gain access to multiplugs.
  3. Release fog light, hazard and heated rear screen multiplugs.
  4. Release Lucar and multiplug from cigar lighter.
  5. Remove front console.
