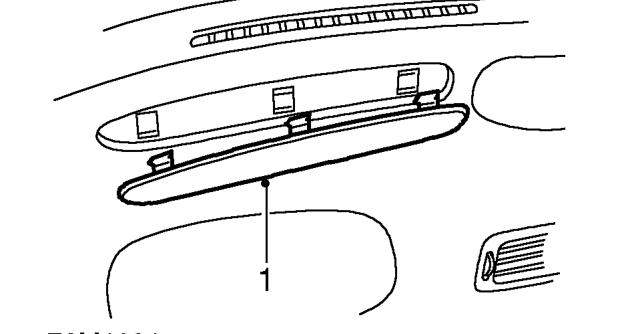

FASCIA VENEERED PANEL

Service repair no - 76.46.24

CAUTION: Fit protection to fascia before removing veneered panel.

Remove

Fascia veneered panel – Service repair no - 76.46.24
  1. Using a flat blade, carefully release veneered panel from fascia and remove.

Refit

  1. Position panel to fascia and secure clips.

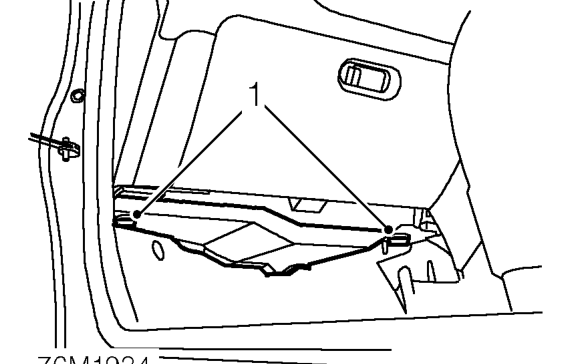

GLOVE BOX

Service repair no - 76.52.02

Remove

Glove box – Service repair no - 76.52.02

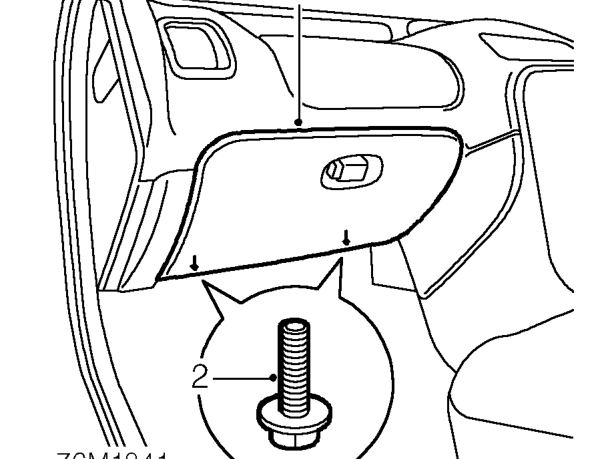

  1. Release 2 turnbuckles and remove lower closing panel.
Glove box – Release 2 turnbuckles and remove lower closing panel.
  1. Remove 2 screws securing glove box to fascia.
  2. Remove glove box.

Refit

  1. Fit glove box to fascia and tighten screws to 10 Nm.
  2. Fit lower closing panel to fascia and secure turnbuckles.
