Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

All models:

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Interior trim components › All models:
BodyAll models: · page 1 of 2

All models:

All models:

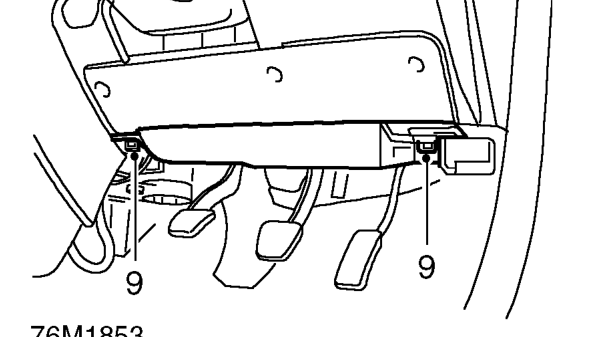

  1. Release 2 turnbuckles and remove drivers side lower cover.
  2. Remove heater controls. See HEATING & VENTILATION, Repairs.
  3. Remove steering column. See STEERING, Repairs.
All models: – Remove steering column. See STEERING, Repairs.

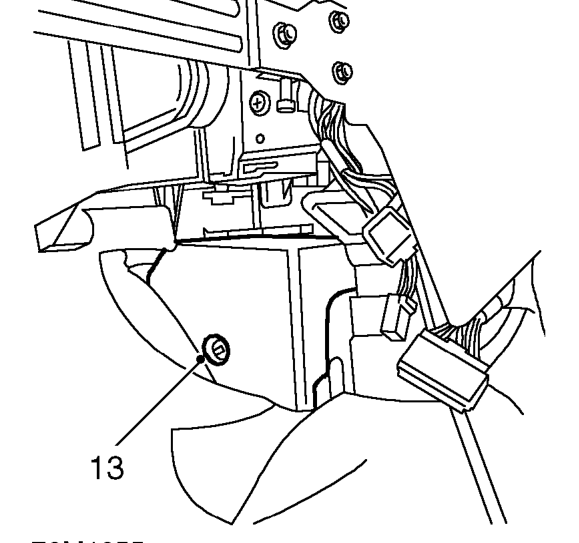

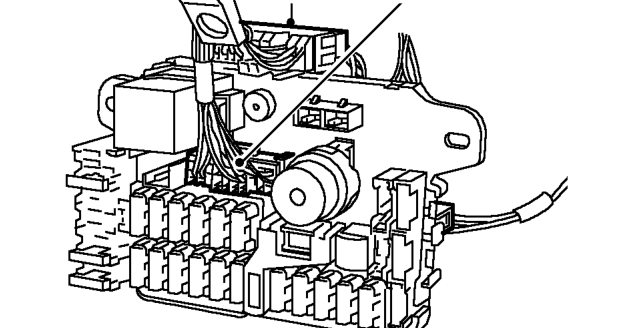

  1. Disconnect 2 fascia harness multiplugs from fusebox.
All models: – Disconnect 2 fascia harness multiplugs from fusebox.
  1. Remove 2 scrivets securing cover to SRS control unit and remove cover.
