Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

All models: (page 2 of 2)

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Interior trim components
BodyAll models: · page 2 of 2
Diagram

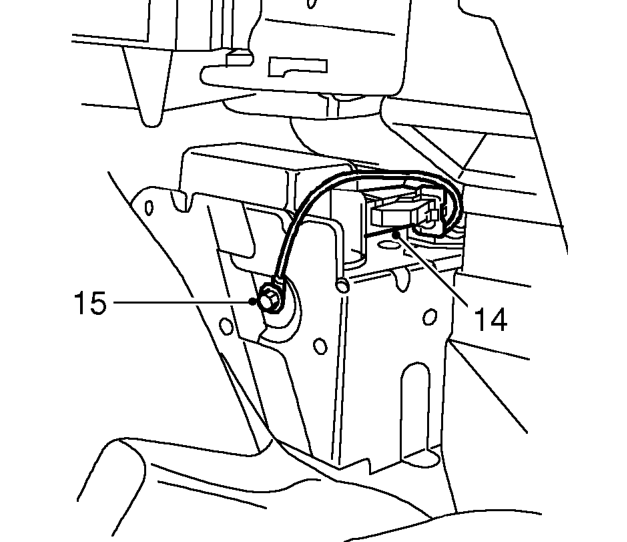

  1. Disconnect multiplug from SRS control unit.

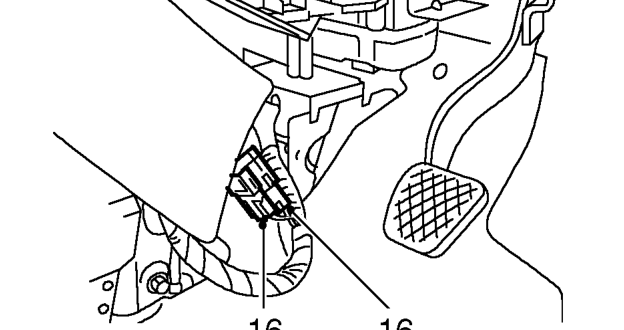

  2. Remove bolt securing SRS harness earth strap to body.
Remove bolt securing SRS harness earth strap to body.
  1. Disconnect 2 multiplugs from SRS harness.
Disconnect 2 multiplugs from SRS harness.

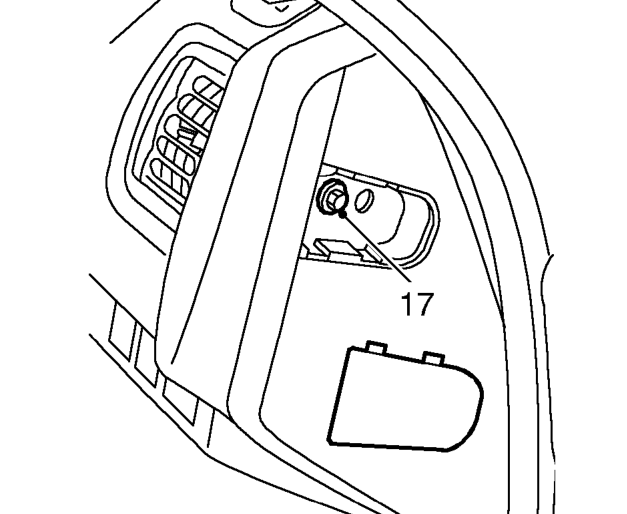

  1. Remove end covers from fascia and remove bolts securing fascia to body.
Remove end covers from fascia and remove bolts securing fascia to body.

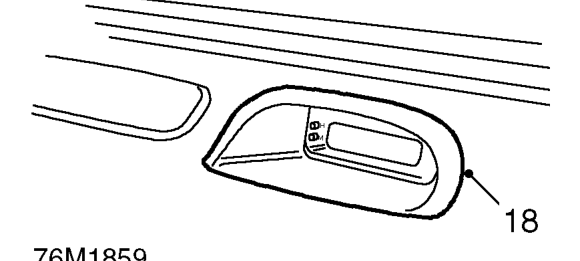

  1. Remove finisher from clock.
