’A’ post upper trim casing

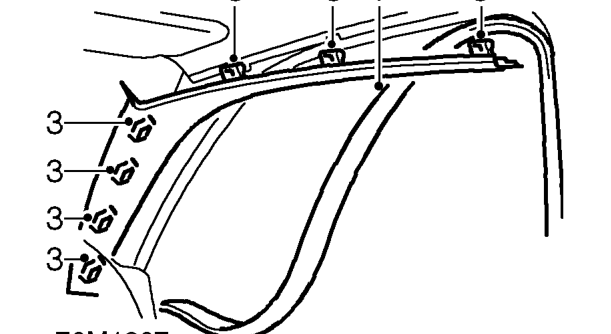

’A’ POST UPPER TRIM CASING

Service repair no - 76.13.26

Remove

1. Open front door and pull seal away from aperture to gain access to trim casing.
2. Release ’A’ post trim casing from behind ’B’ post trim.
3. Release ’A’ post trim from 7 clips and remove.

Refit

1. Position ’A’ post trim to body, ’B’ post trim, and fascia.
2. Secure ’A’ post trim to clips.
3. Fit front door seal to aperture.

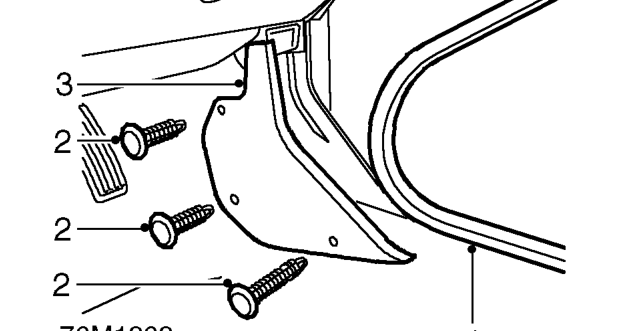

’A’ POST LOWER TRIM CASING

Service repair no - 76.13.27

Remove

1. Open door and remove seal from front door aperture to gain access to trim casing.
2. Remove 3 trim studs securing trim casing to ’A’ post.
3. Remove trim casing.

Refit

1. Fit trim casing to ’A’ post and secure with trim studs.
2. Fit seal to front door aperture.
