Windscreen (page 3 of 4)

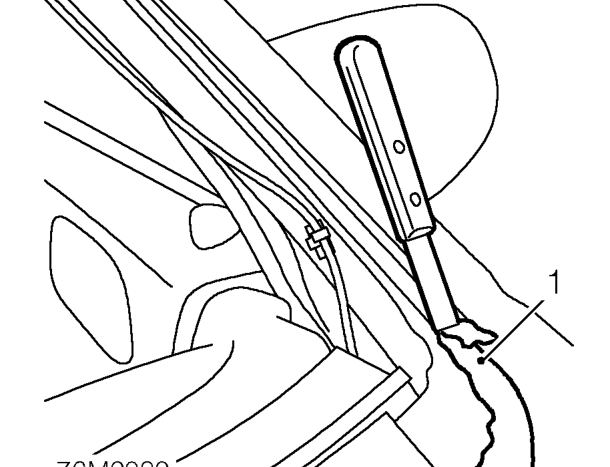

20. Insert cutting wire through sealant at top and bottom of remaining ’A’ post.
21. Make a double cut down remaining ’A’ post.
22. Attach suction cups to screen and use assistance to remove glass from body.

CAUTION: Lay glass on felt covered supports. Do not stand on edge. Any chipping of glass edge may develop into cracks.

Refit

1. Carefully remove excess sealer from body leaving a smooth surface approximately 1 to 2 mm thick.
2. Remove masking near screen aperture.
3. Use a vacuum cleaner to clear away any waste.
4. Apply T-Cut around screen aperture to erase any witness marks made by old screen finisher.

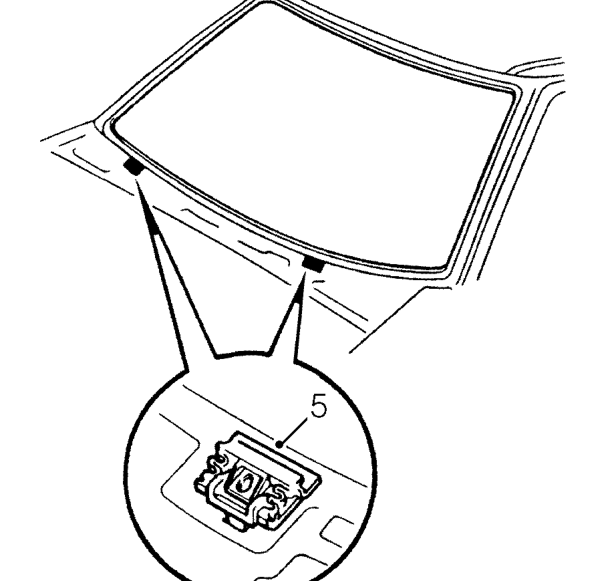

5. Fit spacers to aperture. DO NOT fit screws.
6. With assistance, locate screen to aperture.
7. Apply masking tape reference marks to aid fitment.
8. With assistance, remove screen and place aside.
9. Apply de-greasant agent (yellow top) around screen aperture.

CAUTION: Do not touch cleaned or primed surfaces with fingers.

10. Apply etch primer to any bare metal around screen aperture.
11. Clean and polish new glass.
12. Apply de-greasant agent (yellow top) to screen obscuration band.
13. Apply primer (green top) to screen obscuration band.

NOTE: Allow 15 minutes for primer to cure.
