Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

Tailgate spoiler

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Exterior fittings › Tailgate spoiler
BodyTailgate spoiler

TAILGATE SPOILER

Service repair no - 76.10.93

Remove

  1. Remove tailgate upper finisher. See Interior trim components.
Tailgate spoiler – Remove tailgate upper finisher. See Interior trim components.

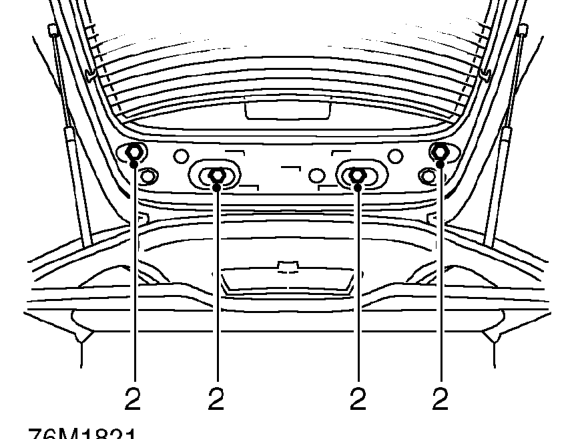

  1. Remove 4 bolts securing spoiler to tailgate.
Tailgate spoiler – Remove 4 bolts securing spoiler to tailgate.

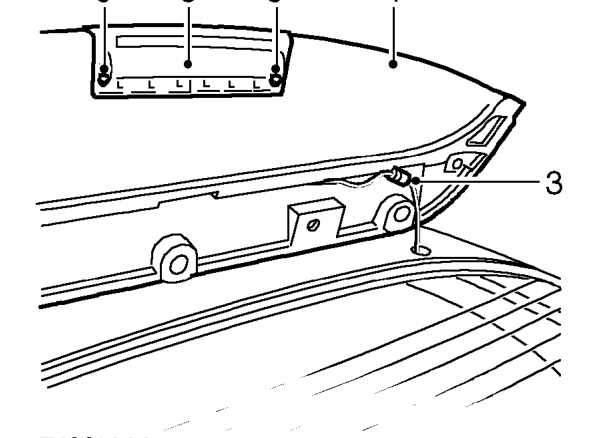

  1. Lower tailgate and move spoiler aside to gain access to centre high mounted stop light multiplug.
  2. Disconnect centre high mounted stop light multiplug and remove spoiler.

Do not carry out further dismantling if component is removed for access only.

  1. Remove 2 screws securing centre high mounted stop light to spoiler.
  2. Remove centre high mounted stop light.

Refit

  1. Fit centre high mounted stop light to spoiler and secure with screws.
  2. Position spoiler to tailgate and connect centre high mounted stop light multiplug.
  3. Fit bolts securing spoiler to tailgate and tighten to 6 Nm.
  4. Fit tailgate upper finisher. See Interior trim components.
