BodyRear quarter rubbing strip
Diagram
  1. Remove clips from rubbing strip by rotating and fit to new.

Refit

  1. Fit rubbing strip to door and secure with clips.
  2. Fit and tighten nut securing forward edge of rubbing strip to door.
  3. Fit rear door plastic sheet. See Interior trim components.

REAR QUARTER RUBBING STRIP

Service repair no - 76.43.87

Remove

  1. Remove rear quarter lower trim casing. See Interior trim components.
Rear quarter rubbing strip – Remove rear quarter lower trim casing. See Interior trim components.

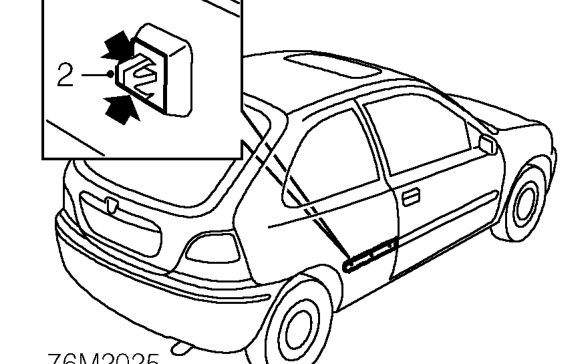

  1. Compress tags on 3 clips and release rubbing strip from rear quarter panel. Do not carry out further dismantling if component is removed for access only.
Rear quarter rubbing strip – Compress tags on 3 clips and release rubbing strip from rear quarter panel. Do not carry o

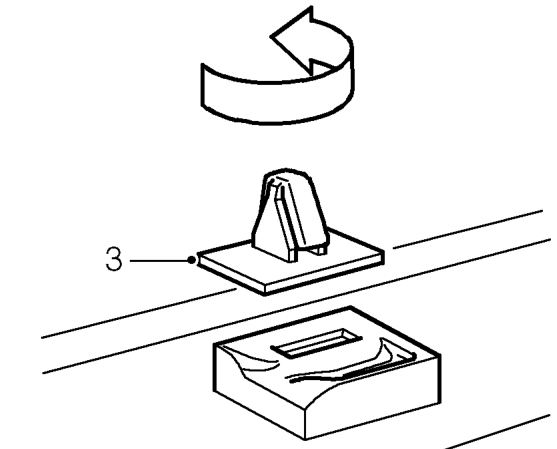

  1. Remove clips from rubbing strip by rotating and fit to new.

Refit

  1. Fit rubbing strip to rear quarter panel and secure with clips.
  2. Fit rear quarter lower trim casing. See Interior trim components.
