Workshop Manuals Factory service & repair Rover
Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

Rear bumper

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Exterior fittings › Rear bumper
BodyRear bumper

REAR BUMPER

Service repair no - 76.22.15

Remove

  1. Open tailgate.

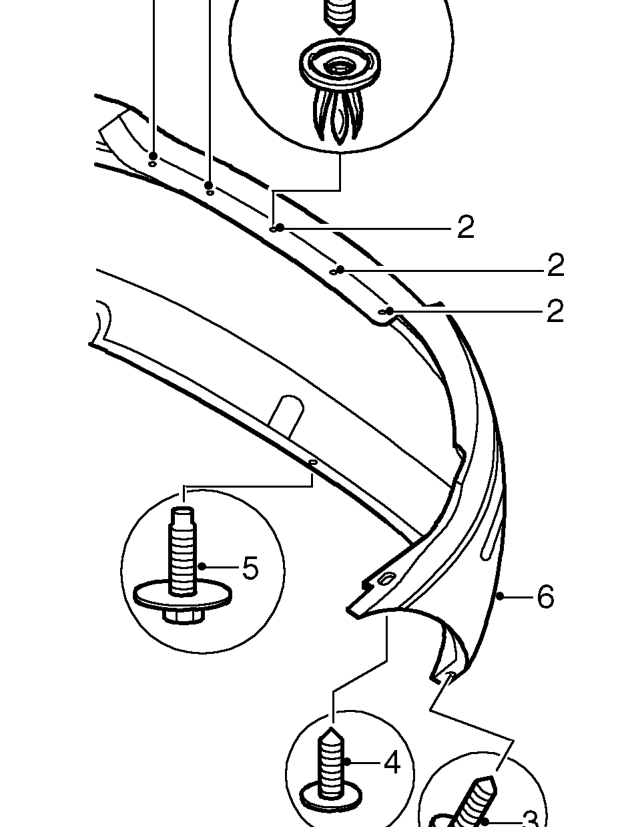

Rear bumper – Open tailgate.
  1. Remove 5 scrivets securing upper edge of bumper to body.
  2. Remove screw either side securing bumper to wheel arch liner.
  3. Remove screw either side securing bumper to rear wing.
  4. Remove bolt securing lower edge of bumper to underbody.
  5. Remove rear bumper.

Refit

  1. Fit rear bumper to body.
  2. Fit bolt securing lower edge and tighten to 6 Nm.
  3. Fit screws securing ends of bumper to rear wing.
  4. Fit screws securing ends of bumper to wheel arch liners.
  5. Fit scrivets securing upper edge of bumper.
