Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

Tailgate applique

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Exterior fittings › Tailgate applique
BodyTailgate applique

TAILGATE APPLIQUE

Service repair no - 76.28.76

Remove

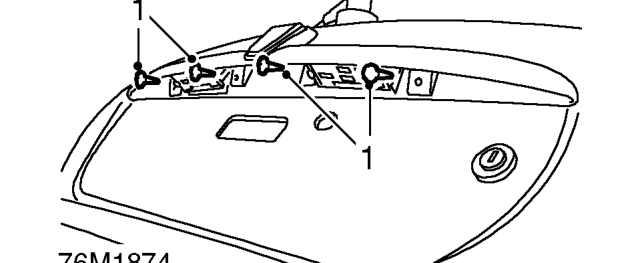

Tailgate applique – Service repair no - 76.28.76
  1. Using special tool 18G 1766 , remove 4 fixings securing applique to tailgate.

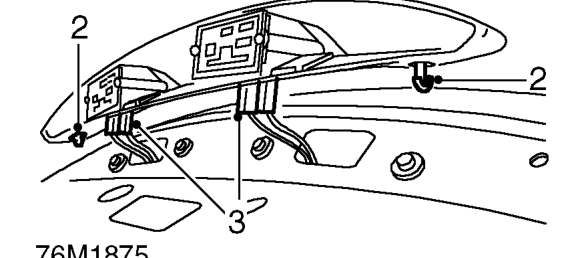

Tailgate applique – Using special tool 18G 1766 , remove 4 fixings securing applique to tailgate.
  1. Release 2 clips securing applique to tailgate.
  2. Disconnect 4 Lucars from number plate lights and remove applique.

Do not carry out further dismantling if component is removed for access only.

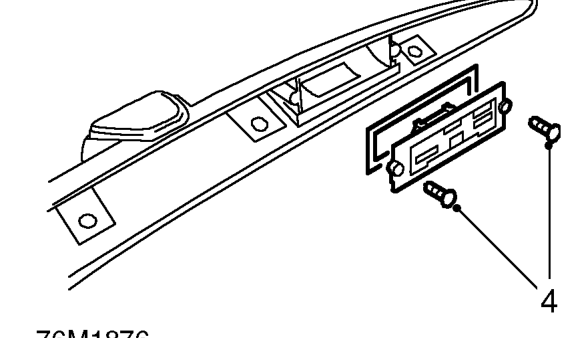

Tailgate applique – Do not carry out further dismantling if component is removed for access only.
  1. Remove 4 screws securing number plate lights.
  2. Remove tailgate lights and fit to new applique.
  3. Fit and tighten screws securing lights to applique.
  4. Fit self adhesive badge to applique.

Refit

  1. Position applique to tailgate and connect number plate light Lucars.
  2. Fit applique to tailgate and secure with clips.
  3. Fit and tighten screws securing applique to tailgate to 2 Nm.
