BodyFront bumper armature

FRONT BUMPER ARMATURE

Service repair no - 76.22.49

Remove

  1. Remove front bumper. See this section.
Front bumper armature – Remove front bumper. See this section.
  1. Remove 4 bolts securing armature to body.
  2. Remove armature.

Refit

  1. Position armature to body and fit and tighten bolts to 10 Nm.
  2. Fit front bumper. See this section.

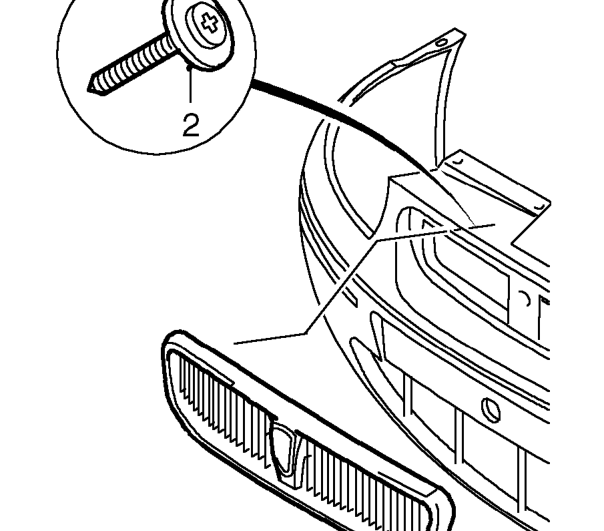

FRONT GRILLE

Service repair no - 76.55.03

Remove

  1. Remove front bumper. See this section.
Front grille – Remove front bumper. See this section.
  1. Remove 10 screws and remove grille.

Refit

  1. Fit grille and secure with screws.
  2. Refit front bumper. See this section.
