Undertray - ’l’ series

UNDERTRAY - ’L’ SERIES

Service repair no - 76.10.50

Remove

WARNING: Support on safety stands.

1. Raise front of vehicle.

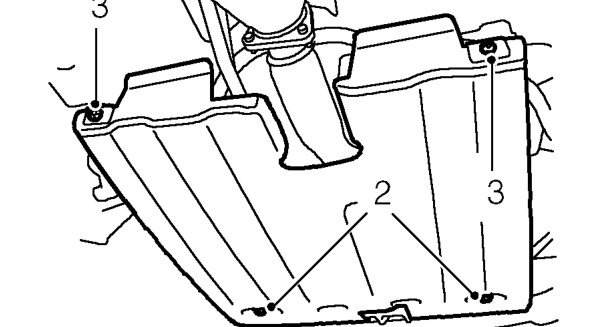

2. Remove 2 bolts securing undertray to front beam.
3. Remove 2 nuts securing undertray to rear beam.
4. Release and remove undertray.

Refit

1. Position undertray and locate on studs on rear beam.
2. Fit nuts securing undertray to rear beam and tighten to 10 Nm.
3. Fit bolts securing undertray to front beam and tighten to 10 Nm.
4. Remove stand(s) and lower vehicle.

SPLASH SHIELD - ’K16 WITH VVC’

Service repair no - 76.10.50

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

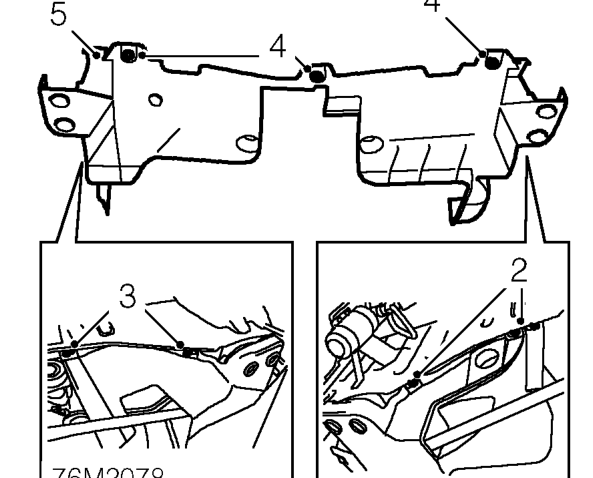

2. Remove 3 bolts securing LH end of splash shield to body.
3. Remove 2 bolts securing RH end of splash shield to body.
4. Remove 3 bolts securing front edge of splash shield to body.
5. Remove splash shield.

Refit

1. Position splash shield to vehicle and secure front edge to body with screws. Tighten screws to 5 Nm.
2. Fit bolts securing RH end of splash shield to body and tighten to 5 Nm.
3. Fit bolts securing LH end of splash shield to body and tighten to 5 Nm.
4. Remove stand(s) and lower vehicle.
