Rear door rubbing strip

Do not carry out further dismantling if component is removed for access only.

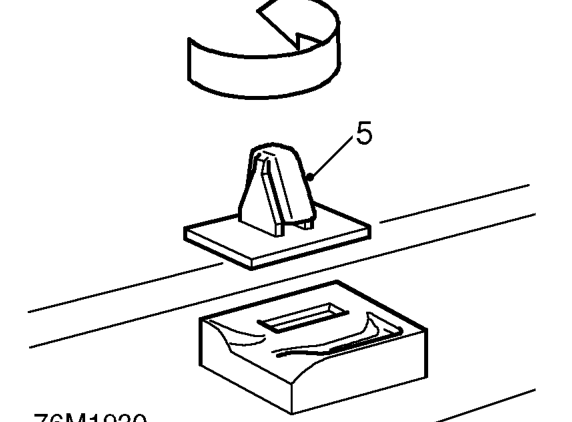

5. Rotate clips to remove from rubbing strip.
6. Fit clips to new rubbing strip.

Refit

1. Fit rubbing strip to door and secure with clips.
2. Fit and tighten nut securing rubbing strip to door to 0.5 Nm.
3. Fit plastic sheet to door. See Interior trim components.

REAR DOOR RUBBING STRIP

Service repair no - 76.43.86

Remove

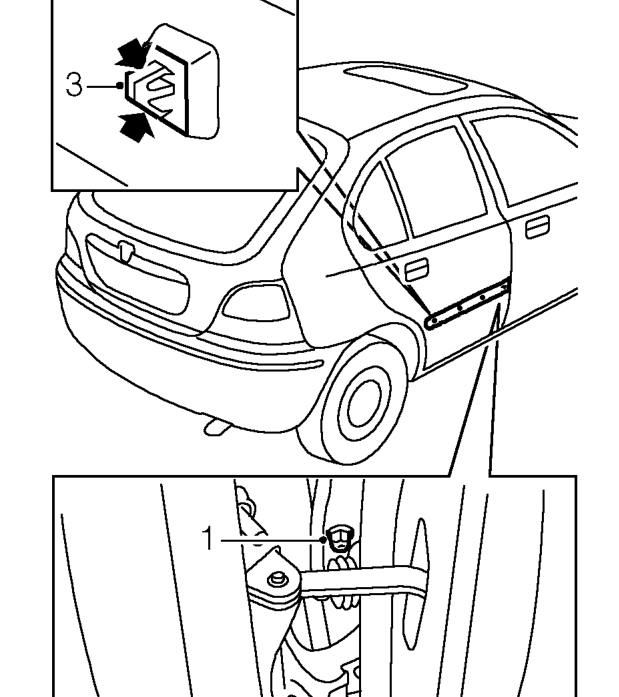

1. Remove nut securing forward edge of rubbing strip to door.
2. Remove rear door plastic sheet. See Interior trim components.
3. Compress tags on 3 clips and release rubbing strip from door. Do not carry out further dismantling if component is removed for access only.
