Engine acoustic cover

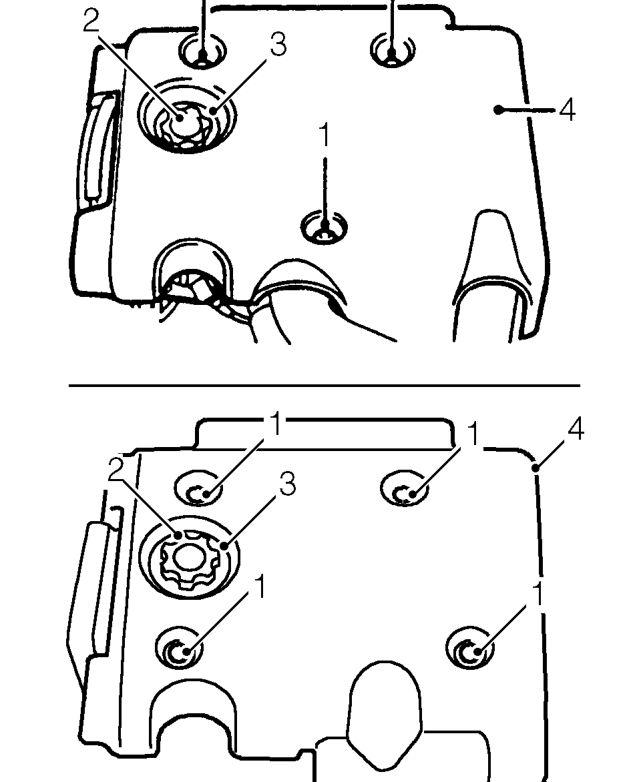

ENGINE ACOUSTIC COVER

Service repair no - 76.11.06

Remove

1. Remove bolts securing acoustic cover to engine.
2. Remove engine oil filler cap.
3. Remove rubber seal from acoustic cover.
4. Remove engine acoustic cover.

Refit

1. Fit engine acoustic cover.
2. Fit and tighten securing bolts.
3. Fit rubber seal.
4. Fit engine oil filler cap.

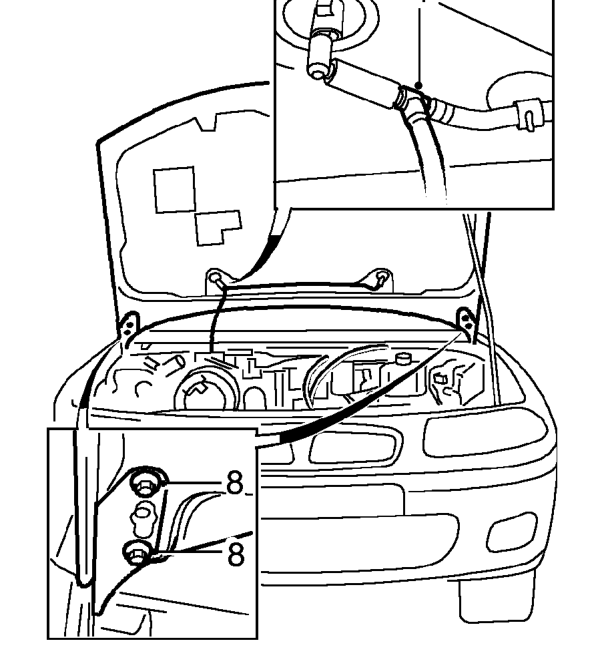

BONNET

Service repair no - 76.16.01

Remove

1. Support bonnet in open position.
2. Fit protection covers to wings.
3. If bonnet is to be refitted, mark outline of hinges.

4. Disconnect washer tube at ’T’ piece.

Vehicles fitted with heated washer jets:

5. Disconnect heated washer jet multiplugs.
6. Release 2 trim studs securing sound deadening pad to bonnet.
7. Move pad aside and release washer jet harness from bonnet.

All models:

8. With assistance, remove 4 bolts securing hinges to bonnet
9. Remove bonnet.
