Automatic gearboxFluid pan gasket

FLUID PAN GASKET

Service repair no - 44.24.04

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Drain gearbox fluid. See AUTOMATIC GEARBOX - ’CVT’, Adjustments.
Fluid pan gasket – Drain gearbox fluid. See AUTOMATIC GEARBOX - ’CVT’, Adjustments.

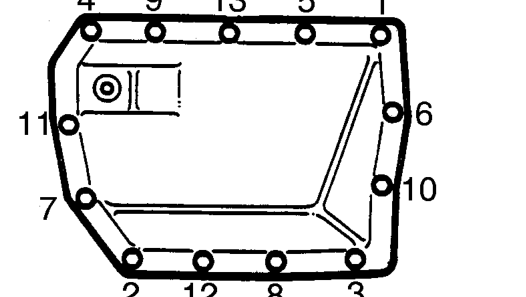

  1. Working in the sequence illustrated, loosen then remove 13 bolts securing fluid pan to gearbox.
  2. Release gasket from gearbox, remove fluid pan and discard gasket.

Refit

  1. Clean mating faces of fluid pan and gearbox.
  2. Lubricate new gasket with gearbox fluid and fit to fluid pan.

CAUTION: Do not apply adhesive to gasket.

Fluid pan gasket – Lubricate new gasket with gearbox fluid and fit to fluid pan.

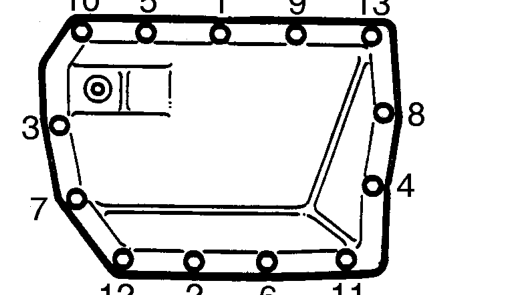

  1. Fit 13 bolts securing fluid pan to gearbox and working in the sequence illustrated, tighten to 10 Nm.
  2. Refill gearbox with fluid. See AUTOMATIC GEARBOX - ’CVT’, Adjustments.
  3. Remove stand(s) and lower vehicle.
