Rover 200 Workshop Manual (1995-1999)20 · Automatic gearbox
20 · Transmission

Starter inhibitor/reverse switch

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Starter inhibitor/reverse switch
Automatic gearboxStarter inhibitor/reverse switch

STARTER INHIBITOR/REVERSE SWITCH

Service repair no - 44.15.19

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Position container to collect fluid loss from gearbox.
Starter inhibitor/reverse switch – Position container to collect fluid loss from gearbox.

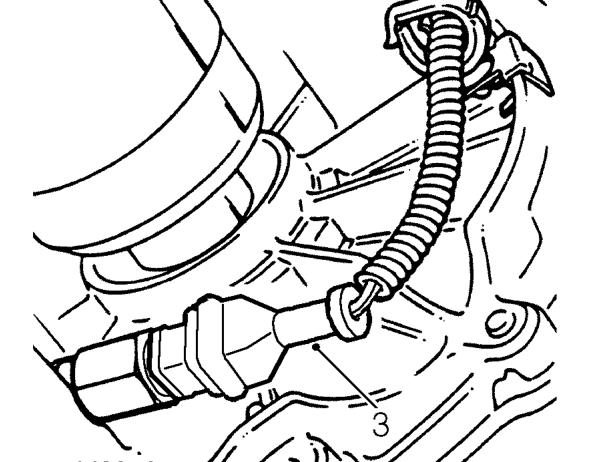

  1. Disconnect multiplug from switch.
Starter inhibitor/reverse switch – Disconnect multiplug from switch.

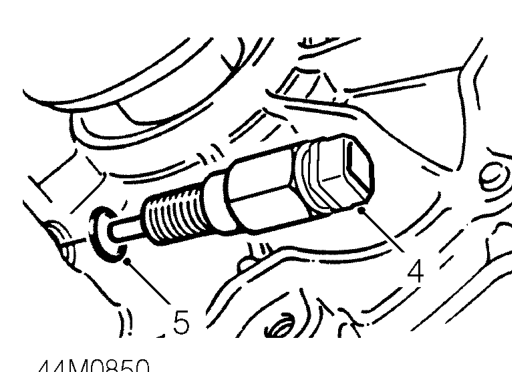

  1. Loosen and remove switch from gearbox.
  2. Remove and discard ’O’ ring from switch.

Refit

  1. Clean switch and mating face of gearbox.
  2. Lubricate new ’O’ ring with gearbox fluid and fit to switch.
  3. Fit switch to gearbox and tighten to 12 Nm.
  4. Connect multiplug to switch.
  5. Remove stand(s) and lower vehicle.
  6. Top-up gearbox fluid level. See AUTOMATIC GEARBOX - ’CVT’, Adjustments.
