Automatic gearboxDipstick tube seal

DIPSTICK TUBE SEAL

Service repair no - 44.24.01

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

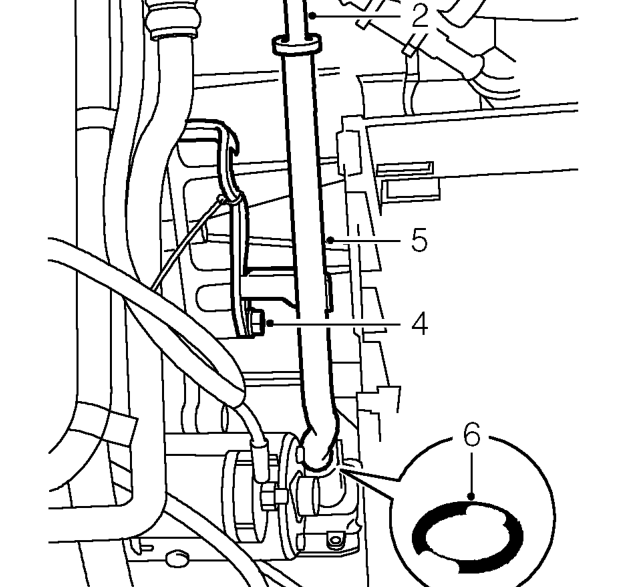

Dipstick tube seal – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Remove dipstick from tube.
  2. Clean gearbox case around dipstick tube entry point.
  3. Remove bolt securing dipstick tube bracket to gearbox.
  4. Remove dipstick tube from gearbox.
  5. Remove and discard ’O’ ring from gearbox.

Refit

  1. Clean dipstick tube and its mating face on gearbox.
  2. Lubricate new ’O’ ring with gearbox fluid and fit to end of dipstick tube.
  3. Fit and align dipstick tube to gearbox.
  4. Fit bolt securing dipstick tube to gearbox and tighten to 25 Nm.
  5. Fit dipstick.
  6. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
