Windscreen (page 2 of 4)

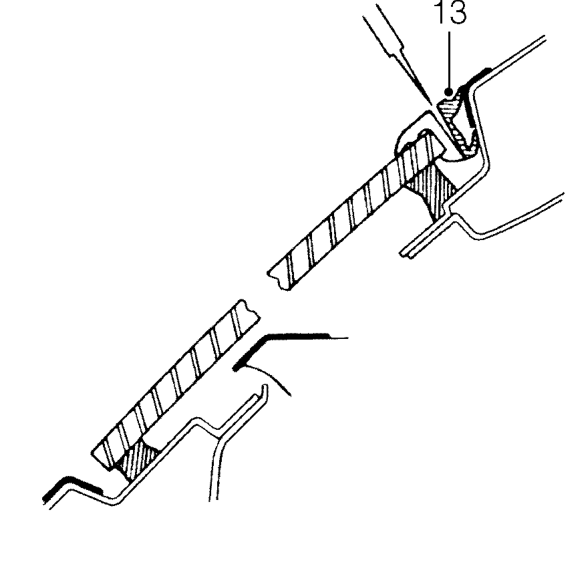

13. Carefully run a sharp blade around screen and remove outer lip of screen finisher.

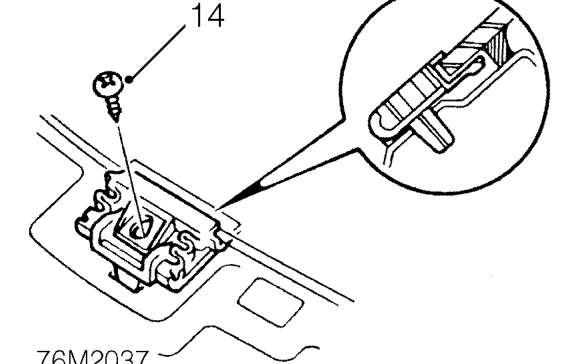

14. Remove 2 screws securing spacers to body.

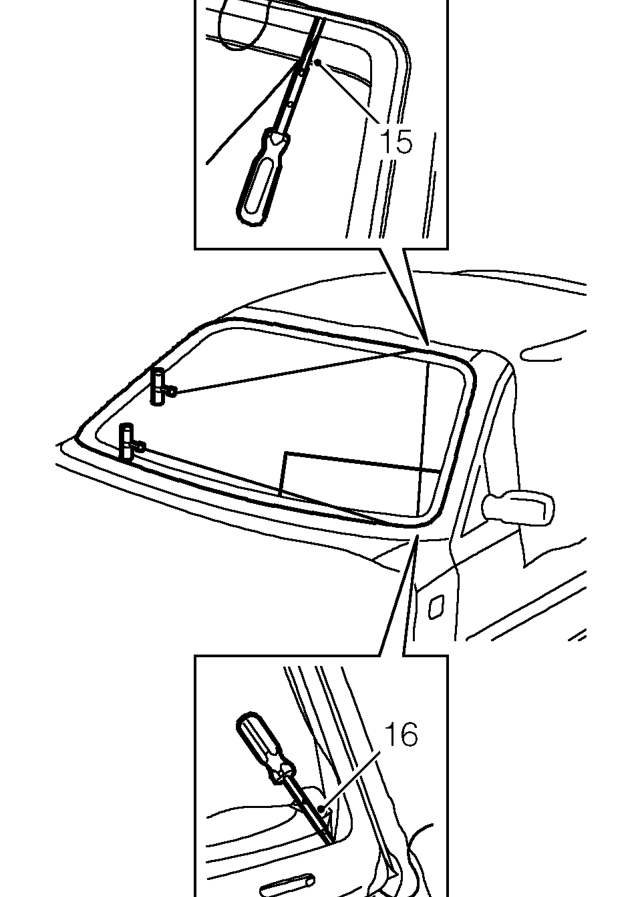

15. Insert cutting wire through sealant at top of ’A’ post.
16. Insert cutting wire through sealant at bottom of ’A’ post.
17. Fit handles to cutting wire.
18. Fit dash guard to interior of vehicle.
19. Make a double cut along top and bottom of screen, and down ’A’ post.

NOTE: If multi-strand cutting wire is used, a sawing action can be used to cut through heavy sealant deposits around corners.

CAUTION: Use of a sawing action may overheat and break single strand wire.
