Clutch assembly and release bearing - ’l’ series

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Clutch assembly and release bearing - ’l’ series
ClutchClutch assembly and release bearing - ’l’ series · page 1 of 3
Diagram

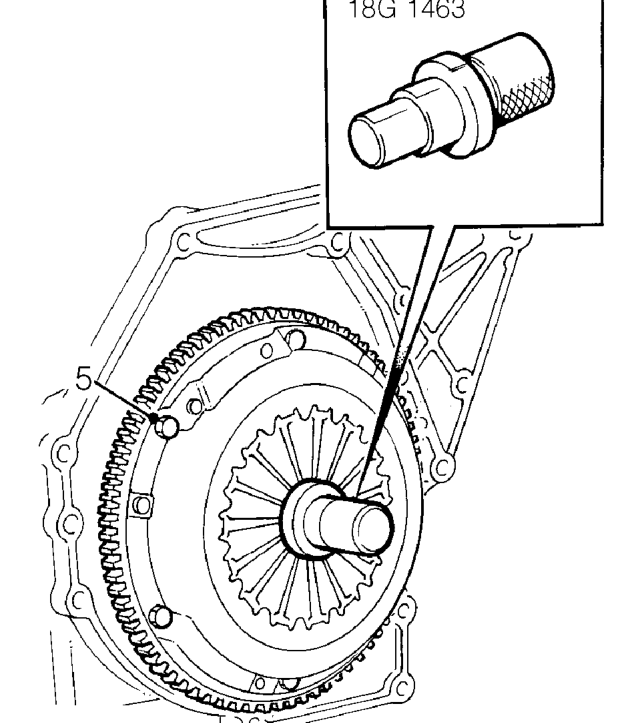

  1. Fit pressure plate to flywheel and fit alignment tool 18G 1483.
  2. Fit 6 bolts securing pressure plate to flywheel finger tight.
  3. Working in a diagonal sequence, progressively tighten bolts to 26 Nm.
  4. Remove drive plate alignment tool 18G 1483.
  5. Remove flywheel locking tool 18G 1674.
  6. Clean clutch release fork and release bearing guide sleeve.
  7. Smear release fork shaft and bore of release bearing with Molybdenum disulphide grease.
  8. Fit release bearing to release fork and slide onto guide sleeve.
  9. Operate release lever to ensure that release bearing is correctly located on release fork and slides smoothly on guide sleeve.
  10. Fit gearbox assembly. See MANUAL GEARBOX - ’PG1’, Repairs.

CLUTCH ASSEMBLY AND RELEASE BEARING - ’L’ SERIES

Service repair no - 33.10.07

Remove

  1. Remove gearbox assembly. See MANUAL GEARBOX - ’PG1’, Repairs.

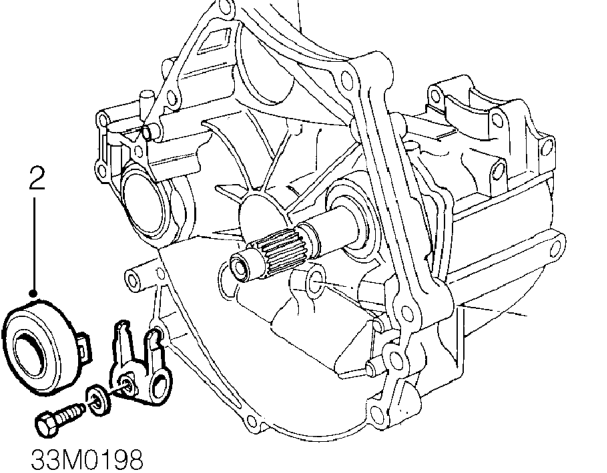

Clutch assembly and release bearing - ’l’ series – Remove gearbox assembly. See MANUAL GEARBOX - ’PG1’, Repairs.
  1. Remove release bearing from guide sleeve and release fork.
  2. Examine release bearing for signs of wear or damage, renew if necessary.

CAUTION: Bearing is packed with grease, DO NOT wash in solvent.
