ClutchClutch release fork and bushes - ’R65’ gearbox

CLUTCH RELEASE FORK AND BUSHES - ’R65’ GEARBOX

Service repair no - 33.25.18

Remove

  1. Remove gearbox assembly. See MANUAL GEARBOX - ’R65’, Repairs.
Clutch release fork and bushes - ’r65’ gearbox – Remove gearbox assembly. See MANUAL GEARBOX - ’R65’, Repairs.

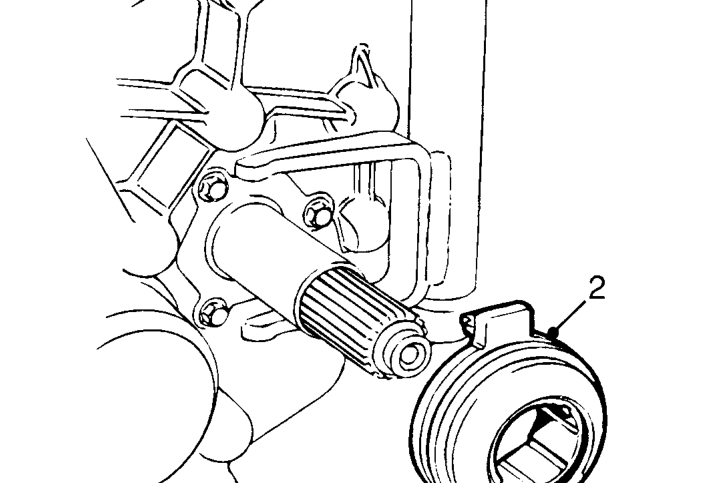

  1. Remove release bearing from guide sleeve and release fork.

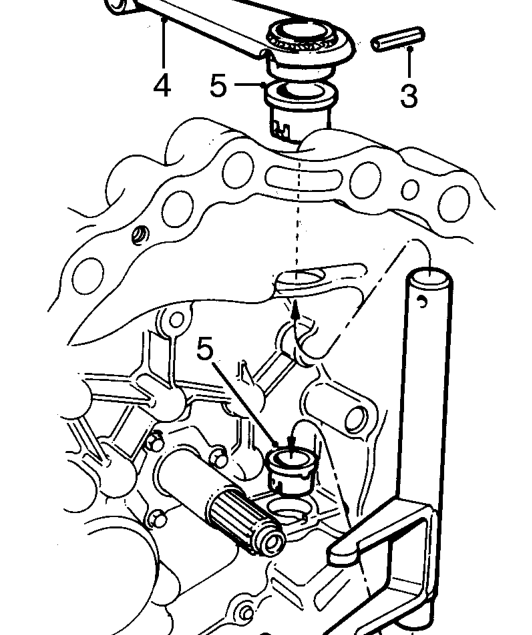

Clutch release fork and bushes - ’r65’ gearbox – Remove release bearing from guide sleeve and release fork.
  1. Remove roll pin securing release lever to release fork shaft.
  2. Remove release lever from release fork shaft.
  3. Extract and discard both release fork bushes from flywheel housing.
  4. Withdraw release fork shaft from flywheel housing.
  5. Examine release bearing for signs of wear or damage and renew if necessary.

CAUTION: Bearing is packed with grease, DO NOT wash in solvent.
