Manual gearbox - R65Gear selector mounting · page 1 of 5

GEAR SELECTOR MOUNTING

Service repair no - 37.16.25

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

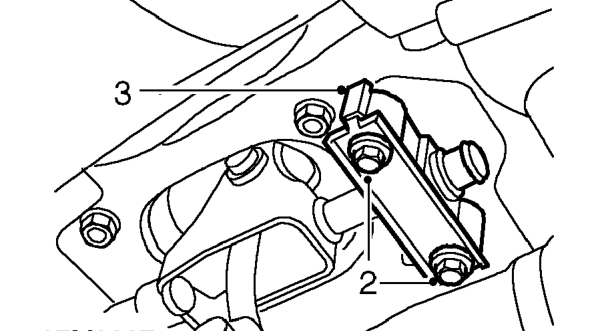

Gear selector mounting – Raise front of vehicle.
  1. Remove 2 bolts securing mounting to body.
  2. Remove mounting plate and rubber from gear selector.

Refit

  1. Position mounting rubber and plate, fit and tighten bolts to 22 Nm.
  2. Remove stand(s) and lower vehicle.

MANUAL GEARBOX - ’K8’

Service repair no - 37.20.02.99

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove vehicle speed sensor. See INSTRUMENTS, Repairs.
  2. Remove starter motor. See ELECTRICAL, Repairs.
  3. Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  4. Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

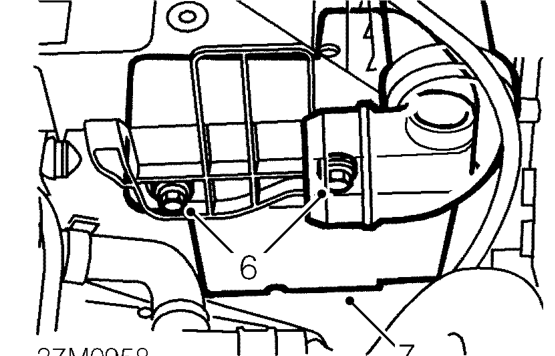

Manual gearbox - ’k8’ – Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Remove 2 bolts securing resonator to battery tray.
  2. Remove resonator.
