Rover 200 Workshop Manual (1995-1999)17 · Manual gearbox - R65
17 · Transmission

Input shaft oil seal

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Input shaft oil seal
Manual gearbox - R65Input shaft oil seal

INPUT SHAFT OIL SEAL

Service repair no - 37.23.06

Remove

  1. Remove gearbox assembly. See this section.

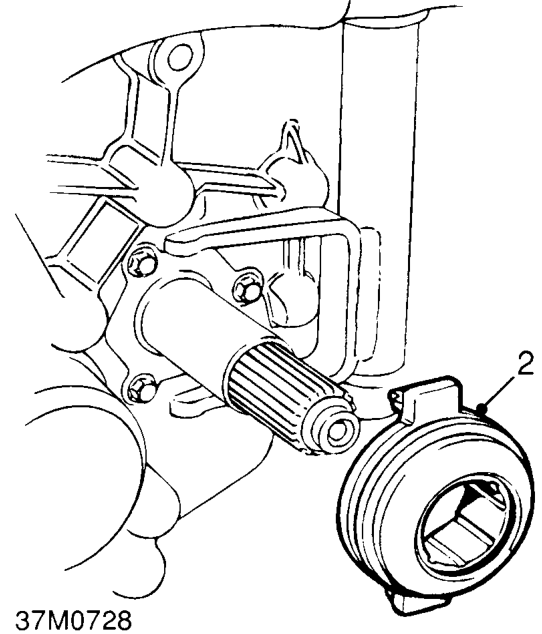

Input shaft oil seal – Remove gearbox assembly. See this section.
  1. Remove clutch release bearing from guide sleeve and release fork.

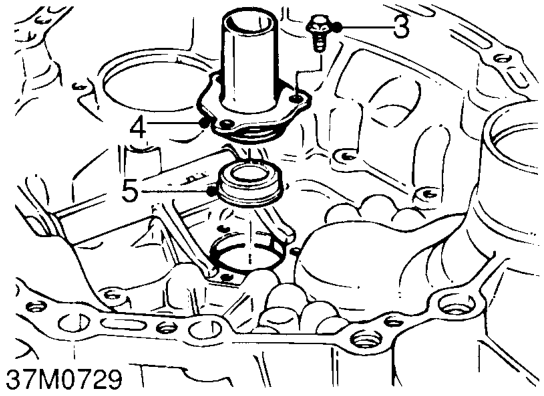

Input shaft oil seal – Remove clutch release bearing from guide sleeve and release fork.
  1. Remove and discard 3 bolts securing release bearing guide sleeve to gearbox.
  2. Remove release bearing guide sleeve from gearbox.
  3. Remove and discard input shaft oil seal from guide sleeve.

Refit

  1. Clean guide sleeve bolt holes using Loctite Chisel and an M5 x 0.8 tap.
  2. Degrease guide sleeve bolt holes with Loctite 706, rinse with hot water and dry thoroughly.

CAUTION: Never use petrol or paraffin as a cleaning/degreasing agent.

  1. Lubricate new input shaft oil seal with clean gearbox oil. See INFORMATION, Capacities, fluids and lubricants.
  2. Fit input shaft oil seal to guide sleeve.
  3. Fit guide sleeve onto input shaft and align bolt holes to those in gearbox.
  4. Fit 3 new bolts securing guide sleeve to gearbox.
  5. Fit clutch release bearing to release fork.
  6. Fit gearbox assembly. See this section.
