Gear selector mounting (page 2 of 5)

Make

Rover

Model

200 Workshop Manual

Year

1995–1999

Section

Repairs

Manual gearbox - R65Gear selector mounting · page 2 of 5

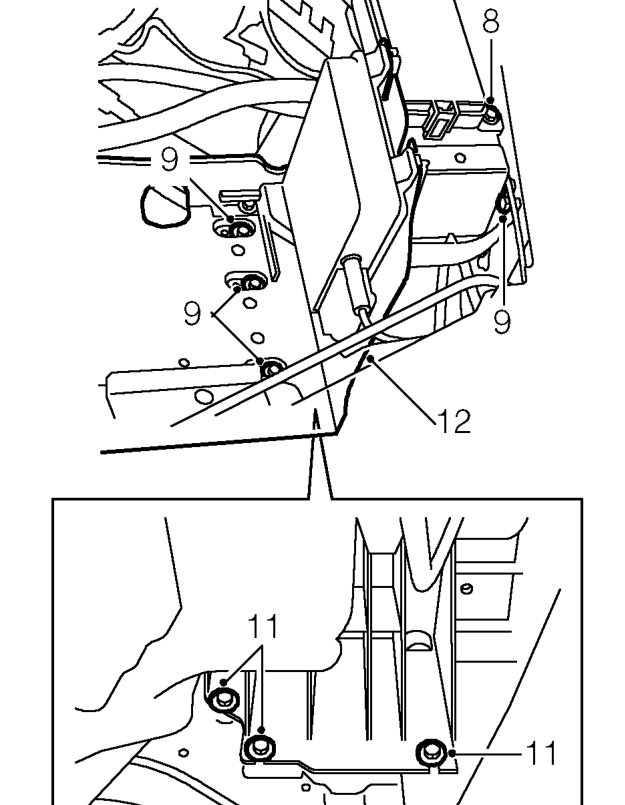

8. Remove bolt securing engine compartment fuse box to battery tray.
9. Remove 4 bolts securing battery tray to body.
10. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
11. Loosen 3 bolts securing battery tray to body.
12. Remove battery tray from vehicle.

13. Disconnect clutch cable from clutch release lever.

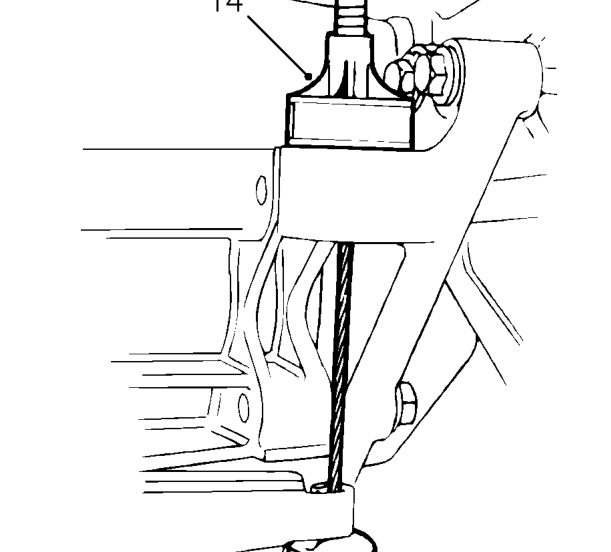

14. Release clutch cable from abutment bracket on gearbox and position aside.

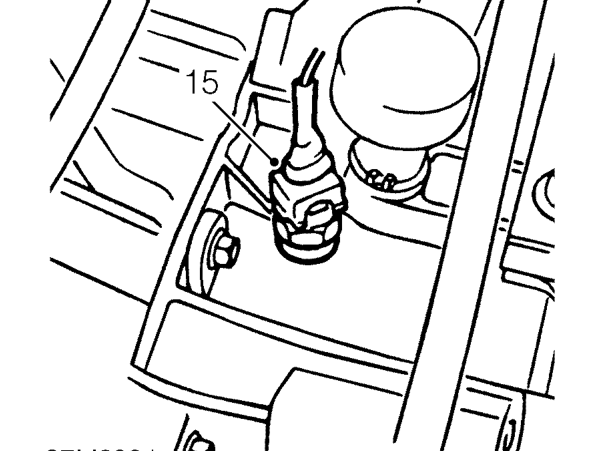

15. Disconnect multiplug from reverse lamp switch.

17 Transmission
