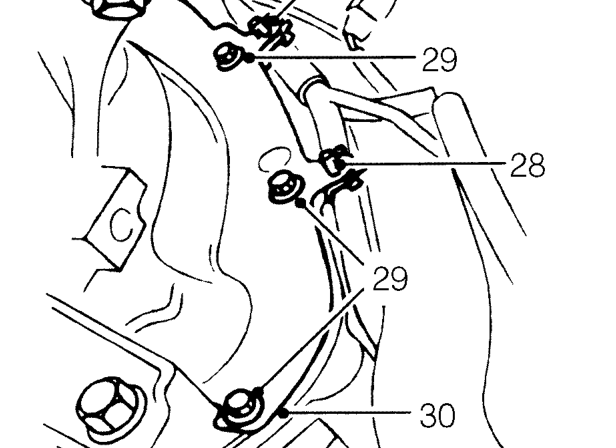

28. Release 2 clips securing starter motor cable to flywheel front cover plate.
29. Remove 3 bolts securing flywheel front cover plate to flywheel housing.
30. Remove flywheel front cover plate.

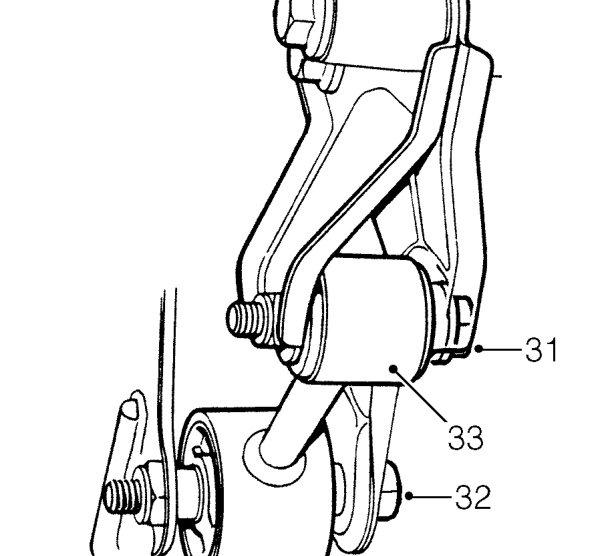

31. Loosen bolt securing engine steady bar to body.
32. Remove through bolt securing engine steady bar to mounting bracket on gearbox.
33. Release engine steady bar from gearbox mounting bracket.

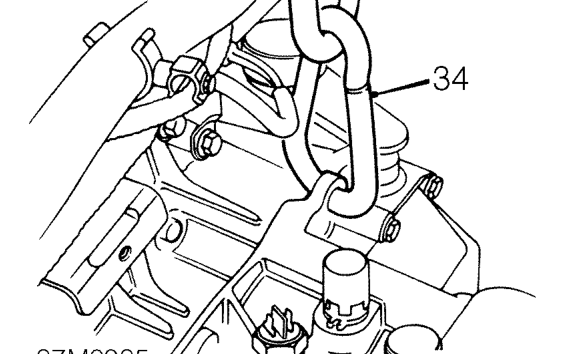

34. Fit lifting eye to gearbox and connect suitable lifting equipment to lifting eye.
35. Take weight of gearbox with lifting equipment.

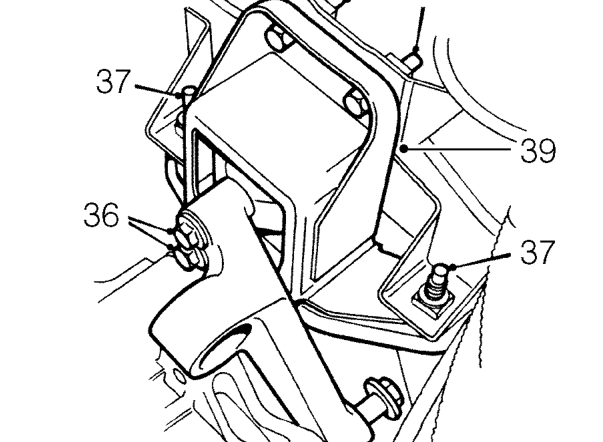

36. Remove 2 bolts securing engine LH mounting to gearbox mounting bracket.
37. Remove 2 bolts securing engine LH mounting to body.
38. Remove 2 bolts securing engine LH mounting to mounting bracket.
39. Remove engine LH mounting.
40. Fit wooden block to jack and position jack to support engine.
