Gear selector mounting (page 3 of 5)

Make

Rover

Model

200 Workshop Manual

Year

1995–1999

Section

Repairs

Manual gearbox - R65Gear selector mounting · page 3 of 5

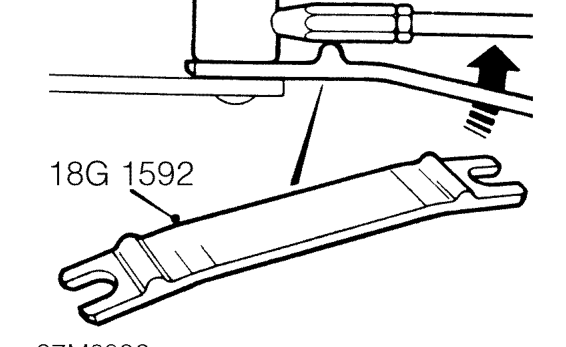

16. Using tool 18G 1592 release gear selector linkage ball joint from gear selector lever.

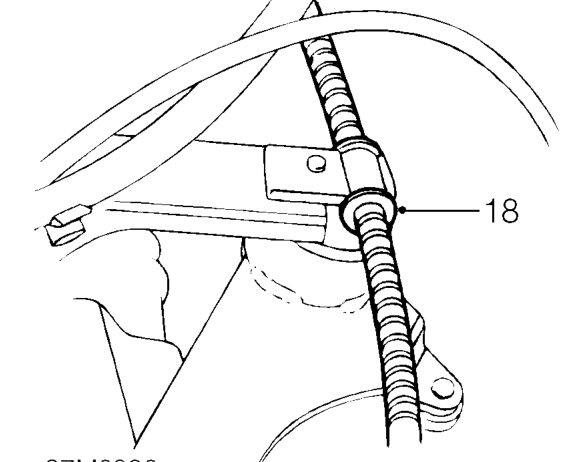

17. Using tool 18G 1592 release gear change linkage ball joint from gear change lever.

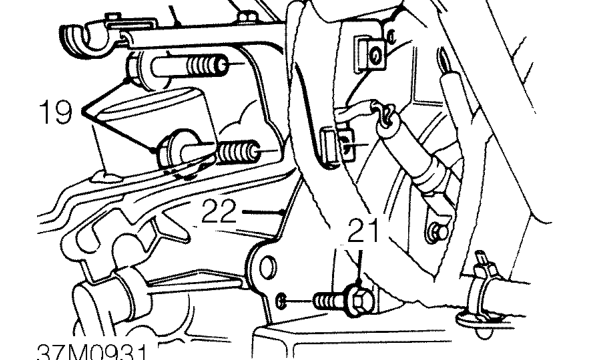

18. Release clutch cable from clip on mounting bracket.

19. Remove 2 bolts securing mounting bracket to flywheel housing.
20. Remove mounting bracket from flywheel housing.
21. Remove bolt securing flywheel rear cover plate to flywheel housing.
22. Remove flywheel rear cover plate.
23. Drain gearbox oil. See Adjustments.
24. Release both drive shafts from gearbox, as detailed in Differential oil seal. See this section.
25. Remove LH front tie rod. See FRONT SUSPENSION, Repairs.

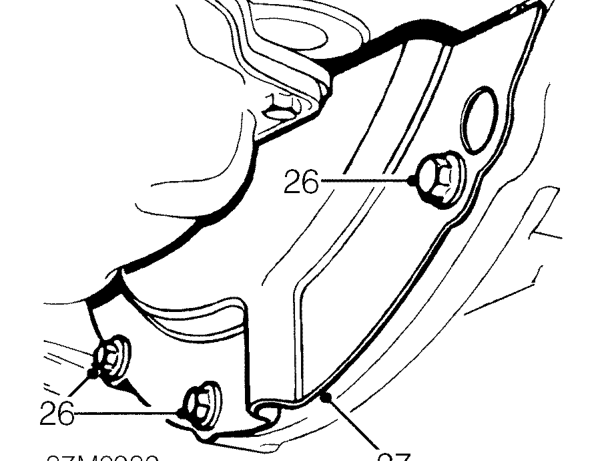

26. Remove 3 bolts securing flywheel lower cover plate to flywheel housing.
27. Remove flywheel lower cover plate.
