Clutch cable - ’PG1’ gearbox (page 2 of 2)

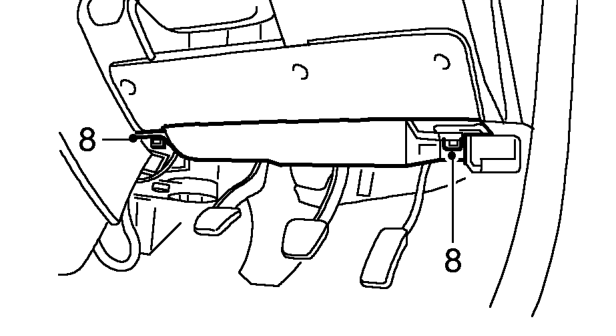

8. Release 2 turnbuckles securing closing panel to underside of fascia.
9. Remove closing panel.

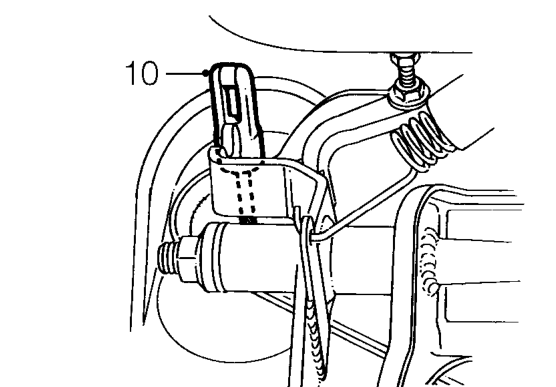

10. Release inner cable from clutch pedal and withdraw cable through bulkhead into engine compartment.
11. Release clutch cable from between hoses and cables and remove.

Refit

1. Lubricate rubber bush on clutch cable with RED rubber grease.
2. Route cable between hoses and cables at rear of engine and through bulkhead.
3. Connect inner cable to clutch pedal. press rubber bush fully into bulkhead tube so that steel washer on cable is abutted.
4. Position closing panel to underside of fascia and secure with turnbuckles.
5. Fit fuse box cover and secure with turnbuckles.
6. RHD models only: Secure clutch cable to clip on coolant hose.
7. Feed clutch cable through abutment bracket and connect to clutch release lever.
8. To check operation of self adjust mechanism, pull clutch release lever through its full stroke and then release.
9. Remove stand(s) and lower vehicle.
10. Fit air cleaner. ’L’ series models: See ENGINE MANAGEMENT SYSTEM - EDC, Repairs. ’K’ series with ’VVC’: See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
