CLUTCH CABLE - ’PG1’ GEARBOX

Service repair no - 33.25.05

Remove

  1. Remove air cleaner. ’L’ series models: See ENGINE MANAGEMENT SYSTEM - EDC, Repairs. ’K’ series models with ’VVC’: See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

Clutch cable - ’pg1’ gearbox – Raise front of vehicle.

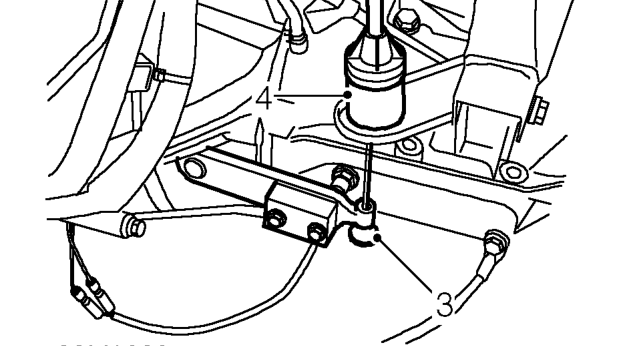

  1. Disconnect clutch cable from clutch release lever.
  2. Release cable from abutment bracket.
Clutch cable - ’pg1’ gearbox – Release cable from abutment bracket.

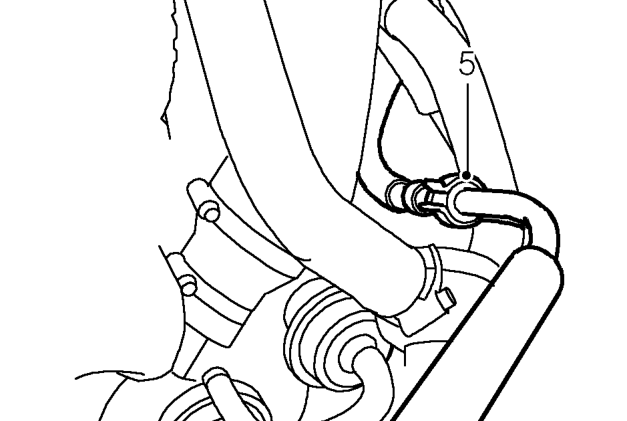

  1. RHD models only: Release clutch cable from clip on coolant hose.
Clutch cable - ’pg1’ gearbox – RHD models only: Release clutch cable from clip on coolant hose.

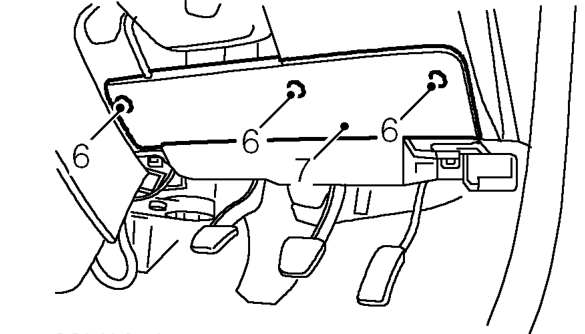

  1. Release 3 turnbuckles securing fuse box cover to lower fascia.
  2. Remove fuse box cover.
