GEAR SELECTOR MOUNTING

Service repair no - 37.16.25

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

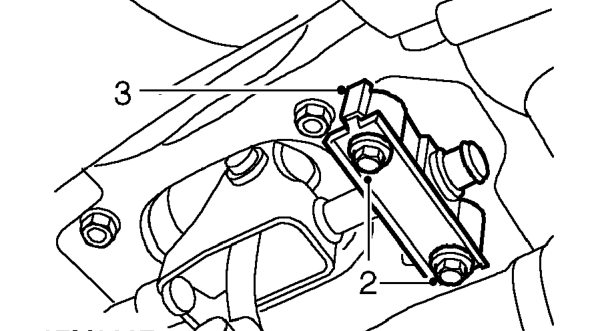

Gear selector mounting – Raise front of vehicle.
  1. Remove 2 bolts securing mounting to body.
  2. Remove mounting plate and rubber from gear selector.

Refit

  1. Position mounting rubber and plate, fit and tighten bolts to 22 Nm.
  2. Remove stand(s) and lower vehicle.

MANUAL GEARBOX - ’K16 1.8 & K16 WITH VVC’

Service repair no - 37.20.02.99

Remove

  1. Drain gearbox oil. See Adjustments.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove starter motor. See ELECTRICAL, Repairs.
  2. Remove ECM. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

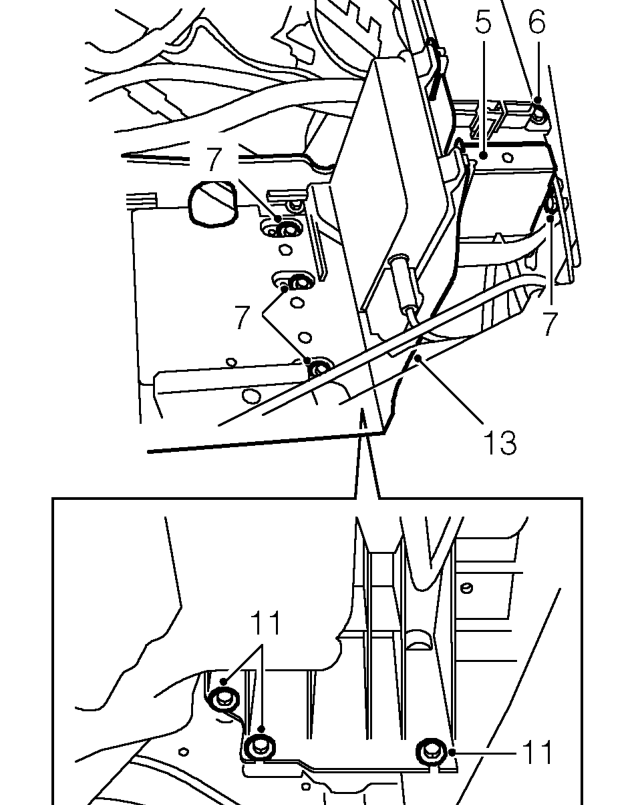

Manual gearbox - ’k16 1.8 & k16 with vvc’ – Remove ECM. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Release engine management relay module from bracket and position aside.
  2. Remove bolt securing engine compartment fuse box to battery tray.
  3. Remove 4 bolts securing battery tray to body.
  4. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
