Manual gearbox - PG1Gear selector mounting · page 4 of 5

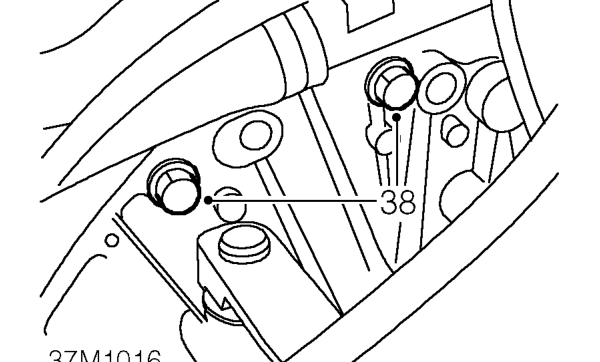

38. Remove 2 upper bolts securing gearbox to engine and remove mounting bracket.

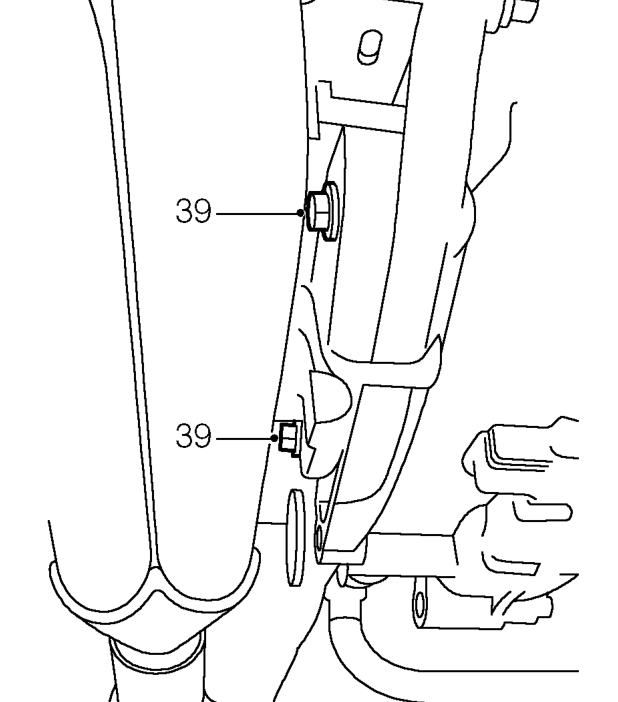

39. Remove 2 lower bolts securing gearbox to engine.

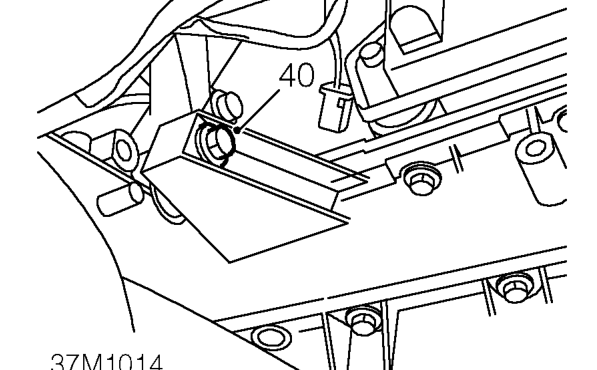

40. Remove bolt at rear of engine securing gearbox to mounting plate.

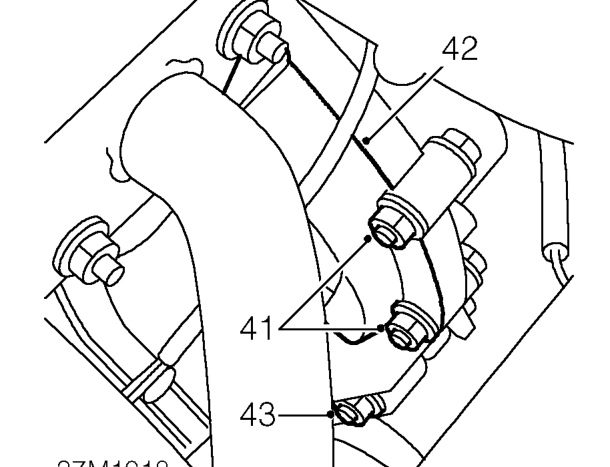

41. Remove 2 nuts and bolts securing flywheel front cover plate to flywheel housing.
42. Remove flywheel front cover plate.
43. Remove nut and bolt securing gearbox to engine.
44. Using assistance, release gearbox from locating dowels on mounting plate.
45. Manoeuvre gearbox from engine and lower from vehicle.
46. Disconnect lifting equipment from gearbox and remove gearbox from beneath vehicle.
