MANUAL GEARBOX - ’L’ SERIES

Service repair no - 37.20.02.99

Remove

  1. Drain gearbox oil. See Adjustments.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove starter motor. See ELECTRICAL, Repairs.
  2. Remove ECM. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  3. Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
Manual gearbox - ’l’ series – Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

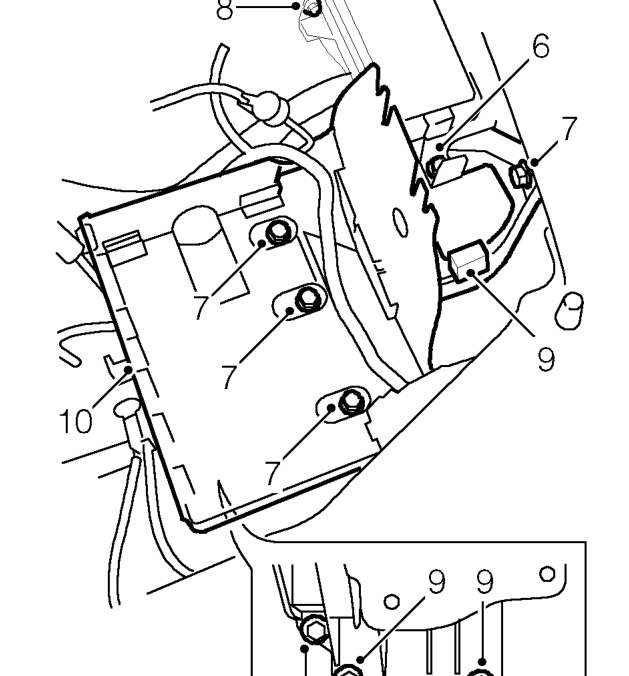

  1. Remove bolt securing engine compartment fuse box to battery tray.
  2. Remove 4 bolts securing battery tray to body.
  3. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
  4. Loosen 3 bolts securing battery tray to body.
  5. Remove battery tray from vehicle.
Manual gearbox - ’l’ series – Remove battery tray from vehicle.

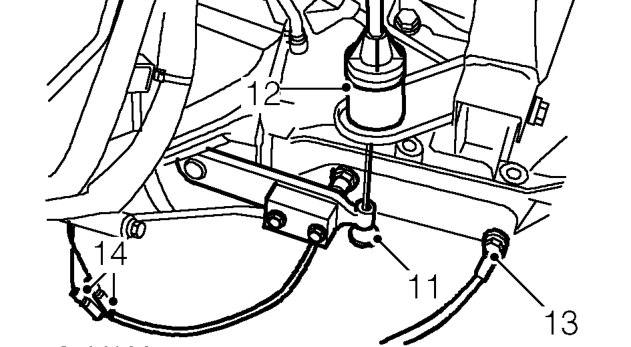

  1. Disconnect clutch cable from clutch release lever.
  2. Release clutch cable from abutment bracket on gearbox and position aside.
  3. Remove bolt securing earth lead to gearbox.
  4. Disconnect 2 reverse lamp switch leads from engine harness.
Manual gearbox - ’l’ series – Disconnect 2 reverse lamp switch leads from engine harness.

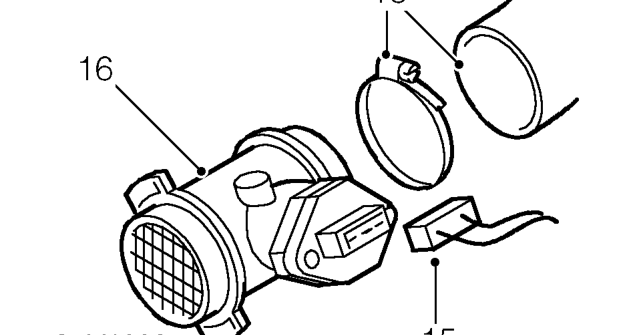

  1. Disconnect multiplug from MAF sensor.
  2. Loosen clip securing MAF sensor to air intake pipe and remove MAF sensor.
