Rover 200 Workshop Manual (1995-1999)18 · Manual gearbox - PG1
18 · Transmission

Manual gearbox - ’l’ series (page 3 of 4)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Manual gearbox - PG1Manual gearbox - ’l’ series · page 3 of 4

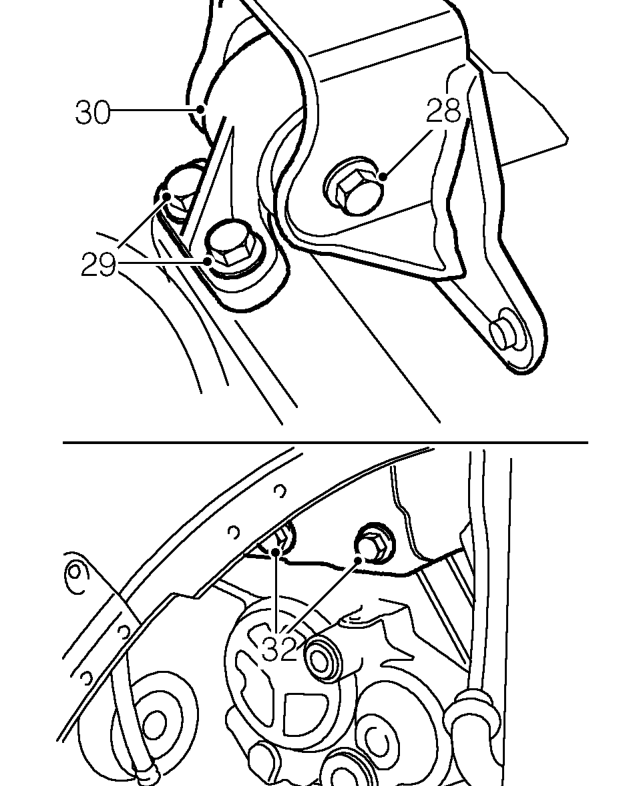

Diagram
  1. Remove through bolt securing engine LH mounting to bracket on body.
  2. Remove 2 bolts securing engine LH mounting to bracket on gearbox.
  3. Remove engine mounting.
  4. Lower engine and gearbox assembly slightly.
  5. Remove 2 bolts securing mounting bracket to gearbox and remove gearbox mounting bracket.

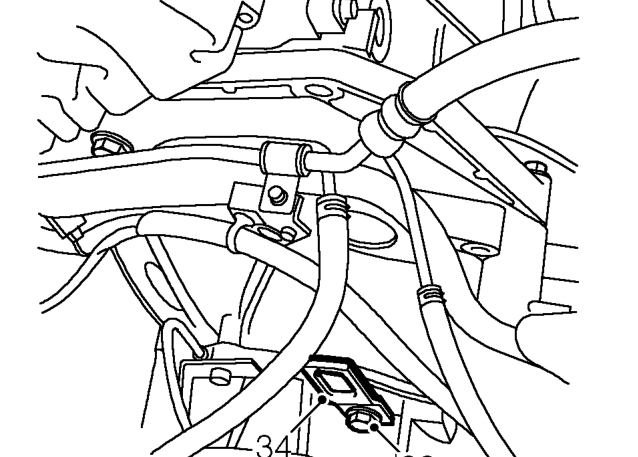

Remove 2 bolts securing mounting bracket to gearbox and remove gearbox mounting bracket.
  1. Remove bolt securing gearbox casing to differential housing.
  2. Position a suitable lifting eye to gearbox and secure with bolt.
  3. Connect suitable lifting equipment to lifting eye.
  4. Take weight of gearbox with lifting equipment.
