Selector shaft oil seal

21. Connect selector rod to shaft and align holes.
22. Fit new roll pin securing selector rod to shaft and fit roll pin retaining clip.
23. Fit washers to gear change steady bar and connect to gearbox.
24. Fit bolt securing gear change steady bar to gearbox and tighten to 10 Nm.
25. Align coolant rail to mounting plate and secure with nut.
26. Fit MAF sensor to air intake pipe and tighten clip.
27. Connect multiplug to MAF sensor.
28. Connect reverse lamp switch leads to engine harness.
29. Position earth lead to gearbox, fit bolt and tighten to 35 Nm.
30. Feed clutch cable through abutment bracket and connect to clutch release lever.
31. Position battery tray in vehicle.
32. Tighten 3 bolts, battery tray to body, to 10 Nm.
33. Position engine compartment fuse box to body, fit bolt and tighten to 10 Nm.
34. Fit 4 bolts securing battery tray to body and tighten to 10 Nm.
35. Fit and tighten bolt securing engine compartment fuse box to battery tray.
36. Fit engine management relay module. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
37. Fit ECM. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
38. Fit starter motor. See ELECTRICAL, Repairs.
39. Remove stand(s) and lower vehicle.
40. Fill gearbox with oil. See Adjustments.

SELECTOR SHAFT OIL SEAL

Service repair no - 37.23.10

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

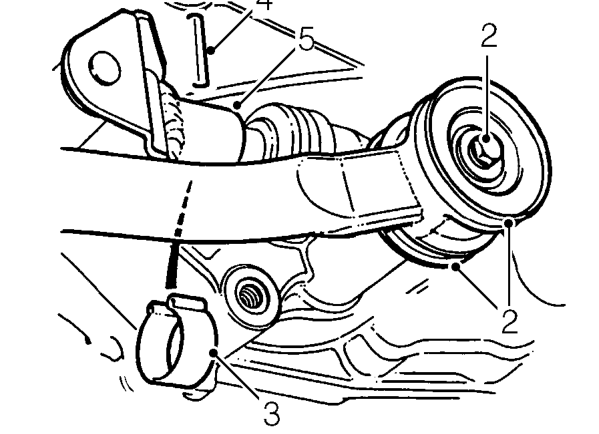

2. Remove bolt and disconnect gear change steady bar from gearbox; collect 2 washers.
3. Remove clip retaining selector rod roll pin.
4. Using a suitable punch, drive out roll pin securing selector rod to selector shaft. Discard roll pin.
5. Release selector rod from selector shaft.
6. Position container beneath gearbox to catch fluid loss.
