RH differential oil seal - ’l’ series

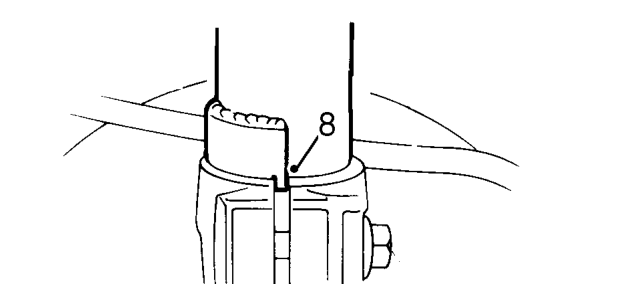

8. Connect front hub to front damper. Ensure locating lug on damper engages in slot on hub.
9. Locate front hub on suspension lower arm ball joint.
10. Fit castellated nut securing hub to suspension lower arm and tighten to 55 Nm, then align next slot in nut with split pin hole.
11. Secure castellated nut with new split pin.
12. Fit pinch bolt securing damper to front hub and tighten to 80 Nm.
13. Fit brake caliper to front hub.
14. Fit 2 bolts and washer securing brake caliper to front hub and tighten to 108 Nm.
15. Models with ABS: Fit ABS sensor to front hub, fit Torx bolt and tighten to 10 Nm.
16. Align brake hose bracket to front damper , fit bolt and tighten to 10 Nm.
17. Connect steering rack track rod end to front hub, fit nut and tighten to 45 Nm.
18. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
19. Remove container positioned to collect gearbox fluid.
20. ’L’ series models: Fit undertray. See BODY, Exterior fittings.
21. Remove stand(s) and lower vehicle.
22. Top-up gearbox fluid. See MAINTENANCE.

RH DIFFERENTIAL OIL SEAL - ’L’ SERIES

Service repair no - 54.10.21

Remove

1. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
2. Remove front road wheel.
3. Position container to collect fluid loss from gearbox.

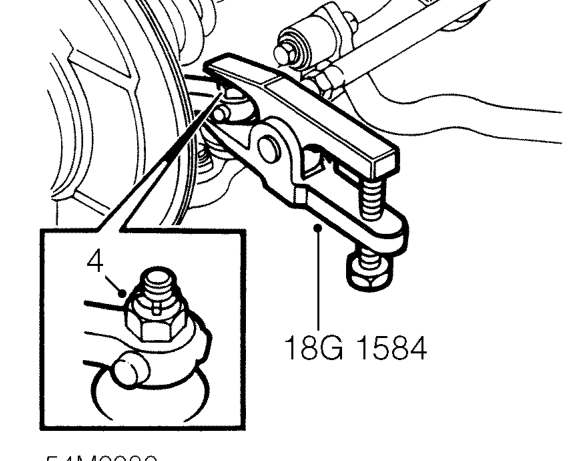

4. Remove nut securing steering rack track rod end to front hub.
5. Break taper joint using tool 18G 1584.
6. Disconnect track rod end from front hub.

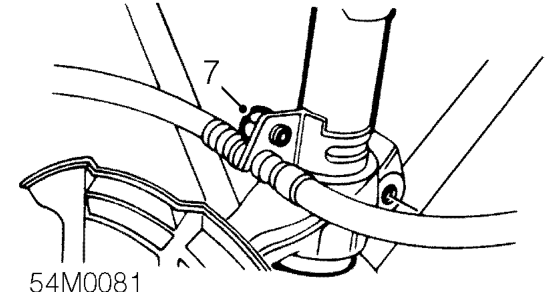

7. Remove bolt securing brake hose to front damper.
