Rover 200 Workshop Manual (1995-1999)18 · Manual gearbox - PG1
18 · Transmission

Models with ABS

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Models with ABS
Manual gearbox - PG1Models with ABS
Diagram

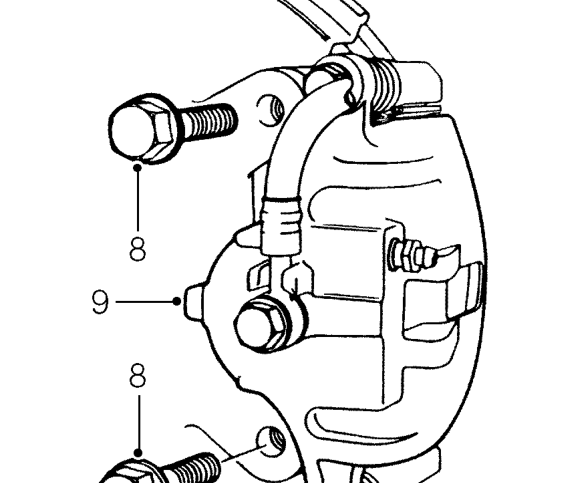

  1. Remove 2 bolts and collect washers securing brake caliper to front hub.
  2. Release brake caliper from front hub and tie aside.

CAUTION: Do not allow caliper to hang on brake hose.

Models with ABS

Models with abs – Release brake caliper from front hub and tie aside.

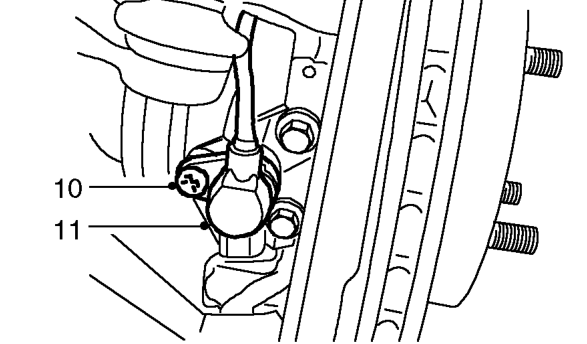

  1. Remove Tx30 Torx bolt securing ABS sensor to front hub.
  2. Release ABS sensor from front hub and position aside.

All models

All models – Release ABS sensor from front hub and position aside.

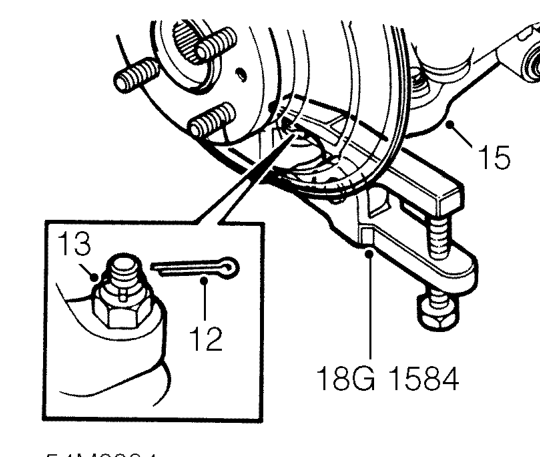

  1. Remove and discard split pin from castellated nut securing front hub to suspension lower arm.
  2. Loosen castellated nut securing front hub to suspension lower arm, until flush with the end of the joint. If necessary, apply penetrating oil to joint.
  3. Break taper joint using tool 18G 1584 .

CAUTION: Be careful not to damage the rubber boot on lower ball joint.

  1. Remove nut from lower ball joint and release suspension lower arm from front hub.
All models – Remove nut from lower ball joint and release suspension lower arm from front hub.

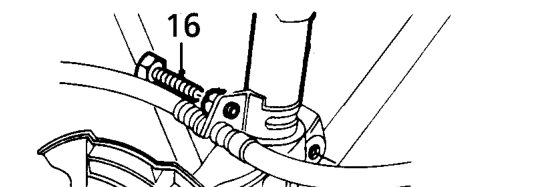

  1. Remove pinch bolt securing front hub to damper.
