Reverse lamp switch

7. Remove gaiter from selector shaft.

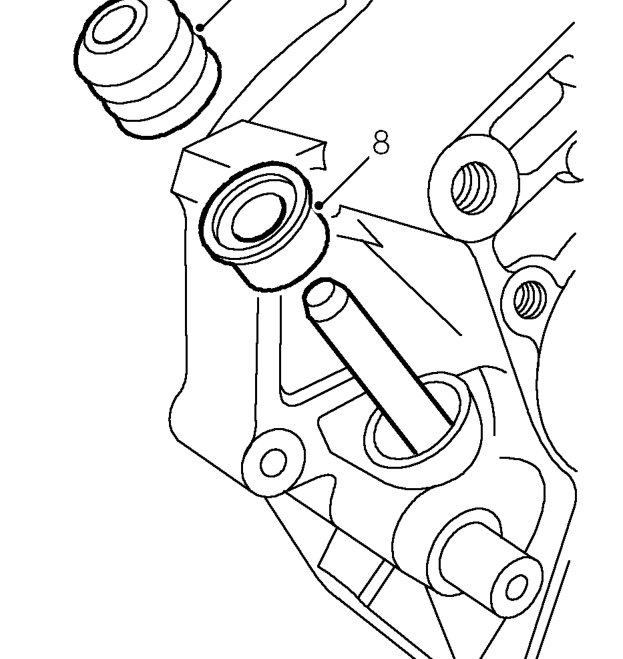

8. Remove and discard selector shaft oil seal.

Refit

1. Clean selector shaft.
2. Using a suitable piece of tubing, fit new selector shaft oil seal.
3. Fit gaiter to selector shaft and ensure lip on gaiter is located on oil seal.
4. Remove container from beneath gearbox.
5. Connect selector rod to shaft and align holes.
6. Fit new roll pin securing selector rod to shaft and fit roll pin retaining clip.
7. Fit washers to gear change steady bar and connect to gearbox.
8. Fit bolt securing gear change steady bar to gearbox and tighten to 10 Nm.
9. Remove stand(s) and lower vehicle.
10. Top-up gearbox oil. See MAINTENANCE.

REVERSE LAMP SWITCH

Service repair no - 37.27.01

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. ’L’ series models: Remove undertray. See BODY, Exterior fittings.

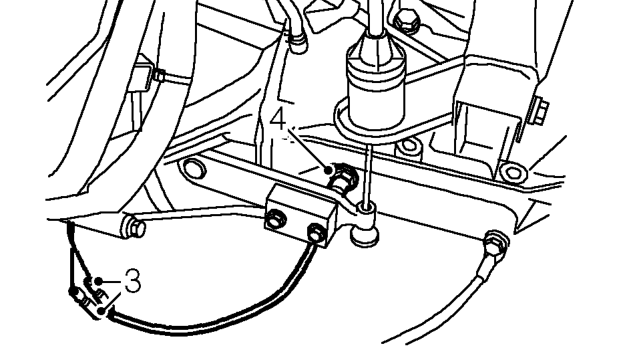

3. Disconnect 2 reverse lamp switch leads from engine harness.
4. Remove reverse lamp switch and discard sealing washer.

Refit

1. Clean reverse lamp switch and fit new sealing washer.
2. Fit reverse lamp switch and tighten to 25 Nm.
3. Connect reverse lamp switch leads to engine harness.
4. Remove stand(s) and lower vehicle.
5. ’L’ series models: Fit undertray. See BODY, Exterior fittings.
